L116.0815.01 EG55
Insert
Part number L116081501EG55

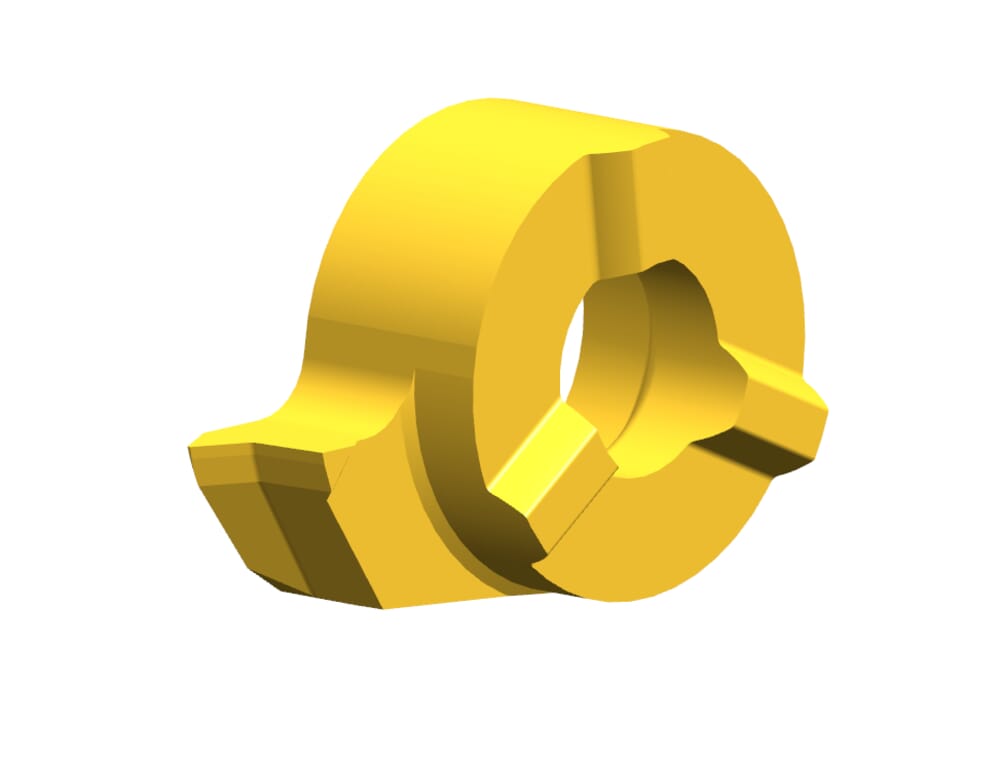

HORN Insert L116.0815.01 EG55 for Gewinden
Please note:Technical instructions
DIN_SSC
HORN-11611084L
pitch-max-met
1.75
mm
pitch-met
1.5
mm
smallest-bore-diameter-met
16
mm
cutting-insert-height-met
5.5
mm
setting-length-met
4.5
mm
tooth-diameter-met
11
mm
cutting-insert-width-met
15.7
mm
setting-range-radial-met
10.2
mm
Katalog_SSC
116110L
ISO_SSC
HORN116110$84L$$$$$
eclass-shortcut
21-18-20-11
number-of-teeth
1
St.
| Downloads | |
|---|---|
| L116081501_20230112_194154606.STP | Download |
| L116081501.DXF | Download |
| Download all files | |
