L116.0815.01 TH35
insert
Part number L116081501TH35

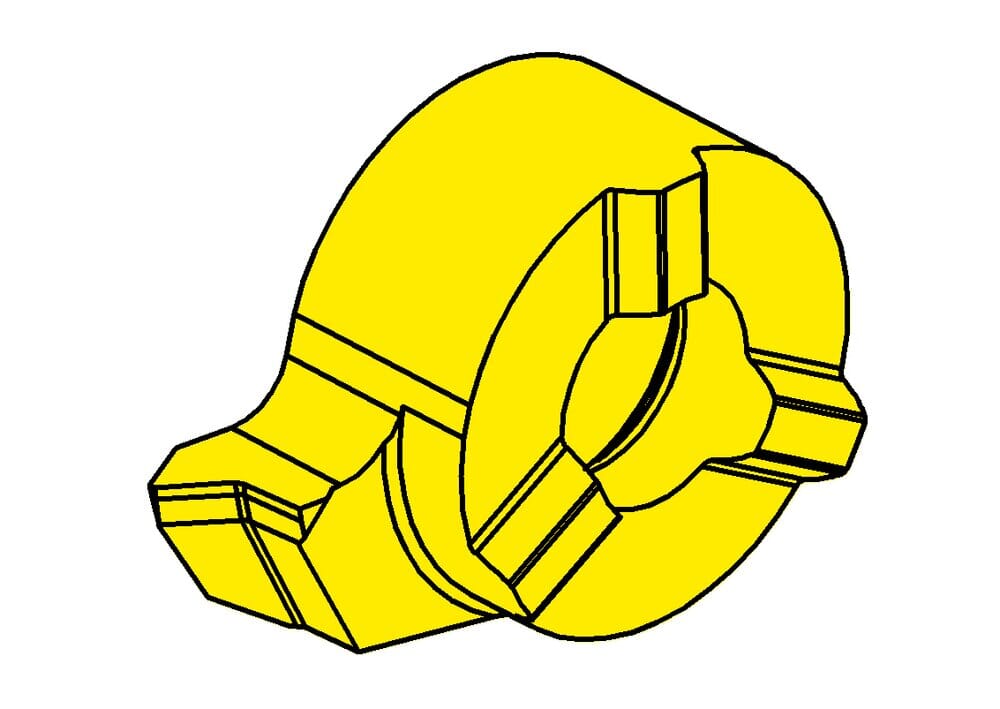

HORN insert L116.0815.01 TH35 for Gewinden
Please note:Technical instructions
setting-length-met
4.5 mm
pitch-max-met
1.75 mm
pitch-met
1.5 mm
smallest-bore-diameter-met
16 mm
cutting-insert-height-met
5.5 mm
number-of-teeth
1 St.
tooth-diameter-met
11 mm
cutting-insert-width-met
15.7 mm
setting-range-radial-met
10.2 mm
Katalog_SSC
116110L
ISO_SSC
HORN116110$84L$$$$$
eclass-shortcut
21-18-20-11
| Downloads | |
|---|---|
| L116_0815_01_TH35-DXF.DXF | Download |
| L116_0815_01_TH35-STP.STP | Download |
| L116_0815_01_TH35-ISO.XML | Download |
| L116_0815_01_TH35-DIN.XML | Download |
| Download all files | |
