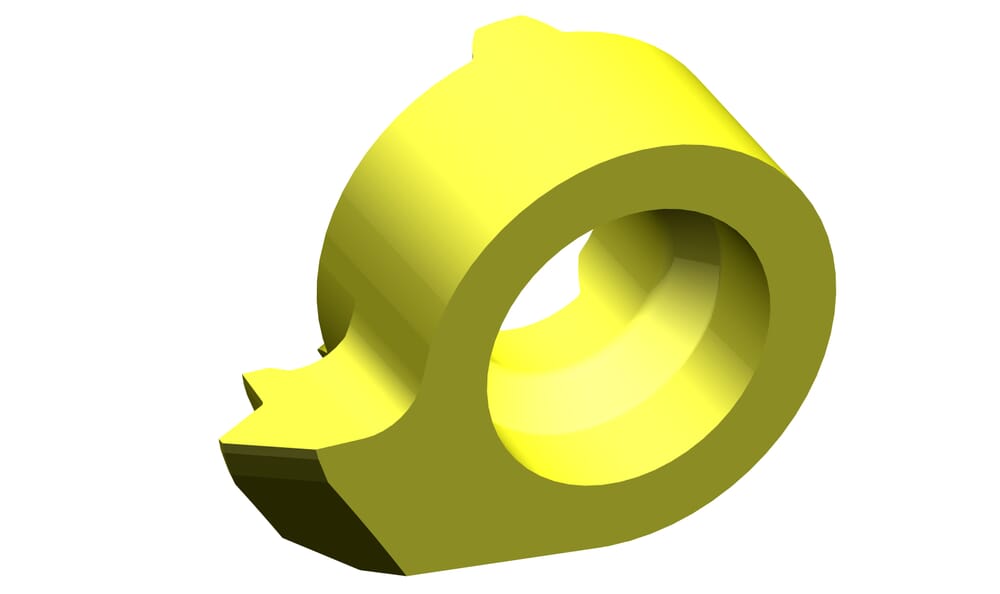

L116.1020.01 TH35
insert
Part number L116102001TH35
HORN insert L116.1020.01 TH35 for Gewinden
Please note:Technical instructions
DIN_SSC
HORN-11611084L
pitch-met
2
mm
smallest-bore-diameter-met
16
mm
cutting-insert-height-met
5.5
mm
setting-length-met
4.3
mm
tooth-diameter-met
11
mm
cutting-insert-width-met
15.7
mm
setting-range-radial-met
10.2
mm
Katalog_SSC
116110L
ISO_SSC
HORN116110$84L$$$$$
eclass-shortcut
21-18-20-11
number-of-teeth
1
St.
| Downloads | |
|---|---|
| L116102001_20230112_194233325.STP | Download |
| L116102001_20210627_182522056.DXF | Download |
| Download all files | |
