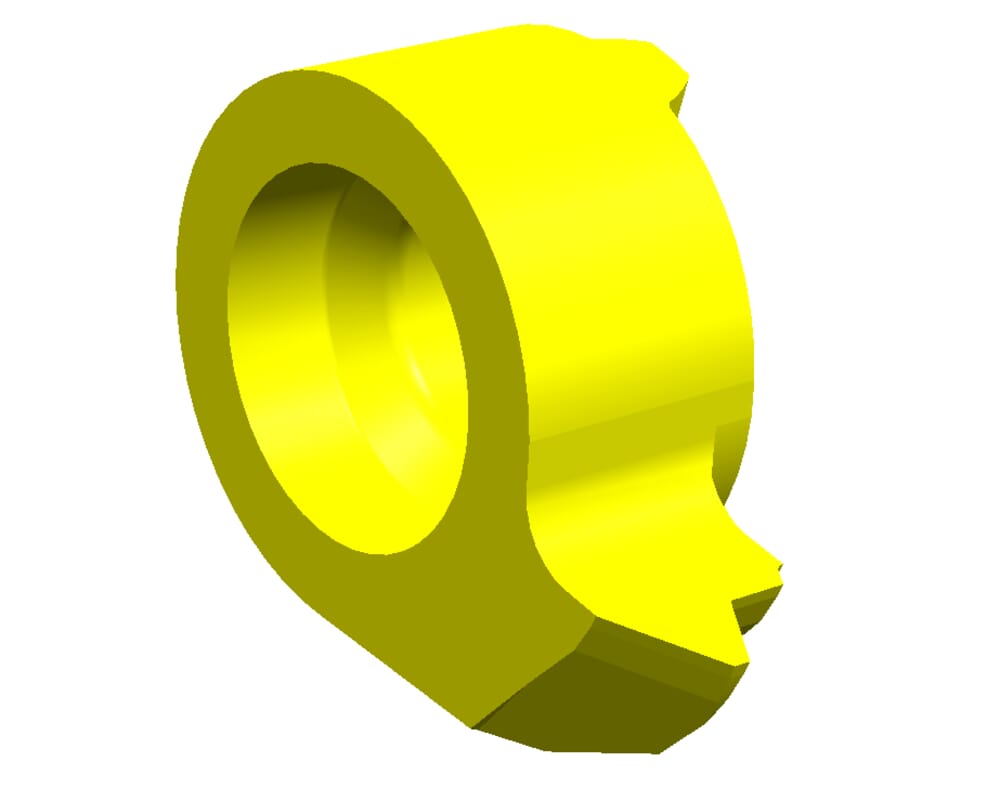

L116.1630.02 EG55
Insert
Part number L116163002EG55
HORN Insert L116.1630.02 EG55 for Gewinden
Please note:Technical instructions
DIN_SSC
HORN-11611084L
Pitch (P)
3
mm
Smallest bore diameter (Dmin)
16
mm
Cutting insert height, Cutting insert thickness (s)
5.5
mm
Setting length (E)
4
mm
Tooth diameter, head diameter (d)
11
mm
Cutting insert width (a)
15.7
mm
Setting range radial (f)
10.2
mm
Katalog_SSC
116110L
ISO_SSC
HORN116110$84L$$$$$
eclass-shortcut
21-18-20-11
number-of-teeth
1
St.
Downloads | |
---|---|
L116163002_20230112_194428787.STP | Download |
L116163002_20210627_190716491.DXF | Download |
Download all files |
