L116.1897.02 EG55
insert
Part number L116189702EG55

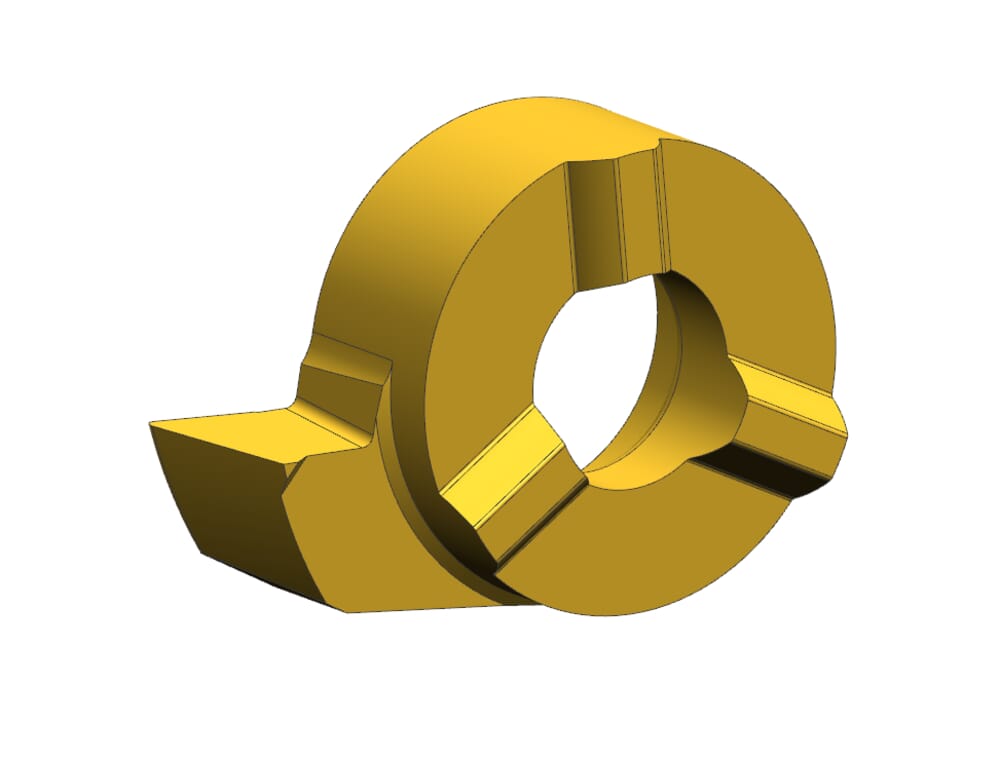

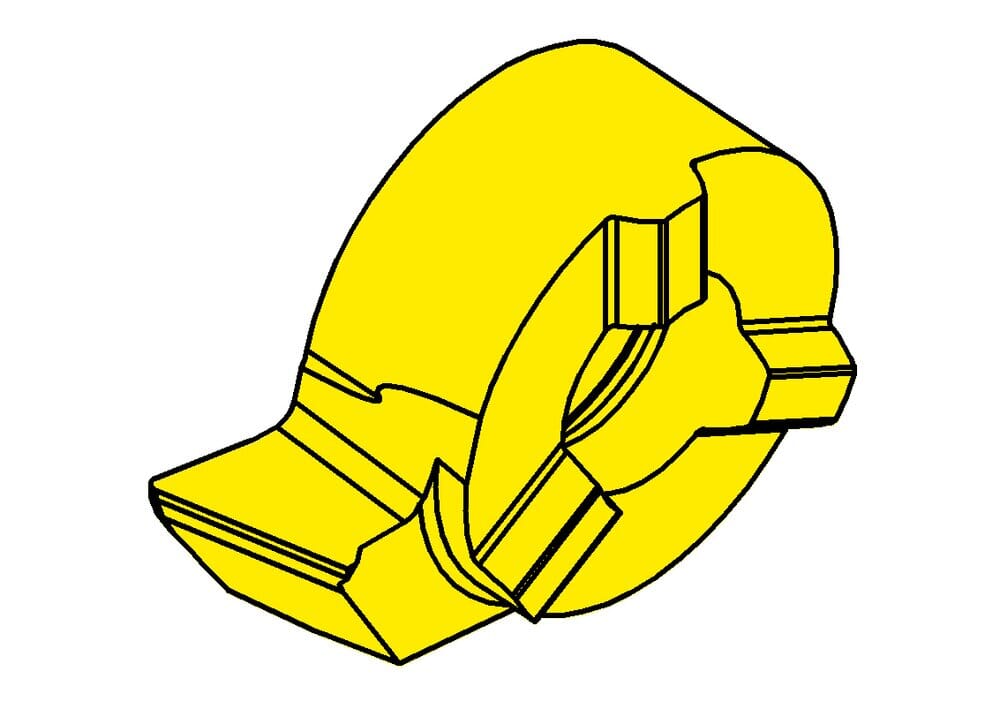

HORN insert L116.1897.02 EG55 for Turning
Please note:Technical instructions
Top radius (r)
0.2
mm
Head size (a)
15.2
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN116110$84L$$$$$
DIN_SSC
HORN-11611084L
Katalog_SSC
116110L
Setting range radial (f)
9.7
mm
Tooth diameter, head diameter (d)
11
mm
Cutting insert height, Cutting insert thickness (s)
5.3
mm
Smallest bore diameter (Dmin)
15.5
mm
| Downloads | |
|---|---|
| L116189702_20230112_194501802.STP | Download |
| L116189702_20210627_182850652.DXF | Download |
| Download all files | |
