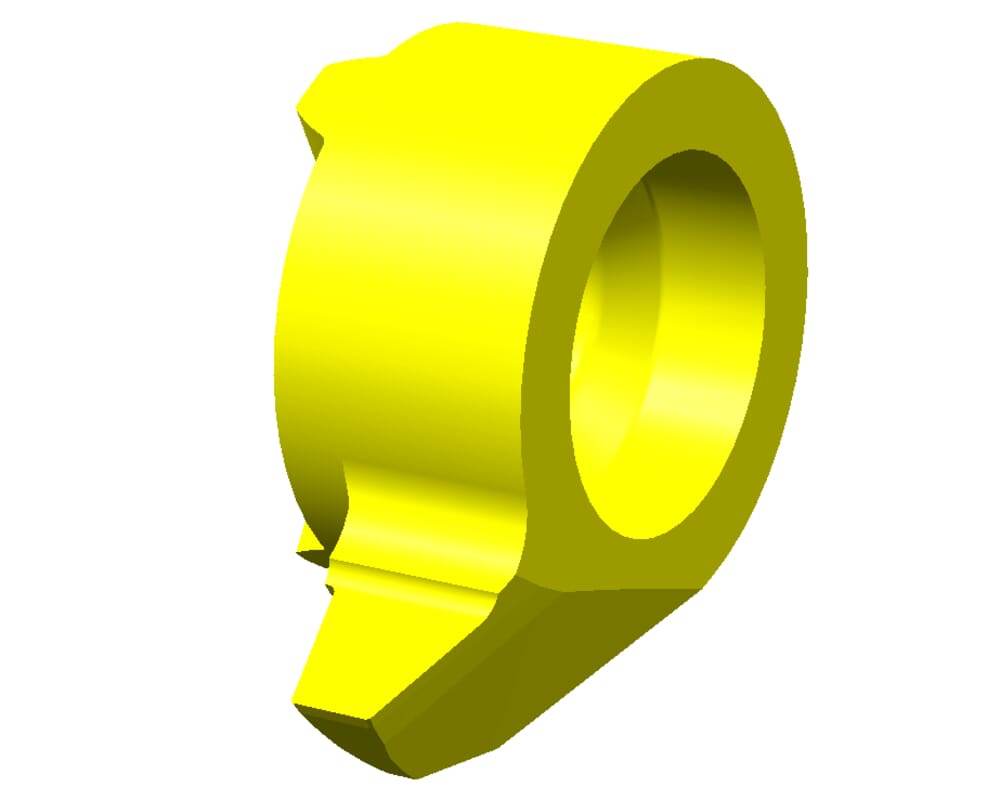

L116.2750.01 TN35

insert

Part number L116275001TN35

HORN insert L116.2750.01 TN35 for Gewinden

DIN_SSC

HORN-11611084L

Pitch (P)

5 mm

Smallest bore diameter (Dmin)

16 mm

Thread (Gewinde)

Tr 24x5

Cutting insert height, Cutting insert thickness (s)

5.5 mm

Setting length (E)

3.55 mm

Tooth diameter, head diameter (d)

11 mm

Cutting insert width (a)

15.7 mm

Setting range radial (f)

10.2 mm

Katalog_SSC

116110L

ISO_SSC

HORN116110$84L$$$$$

eclass-shortcut

21-18-20-11

number-of-teeth

1 St.
