L116.5514.02 EG55
insert
Part number L116551402EG55

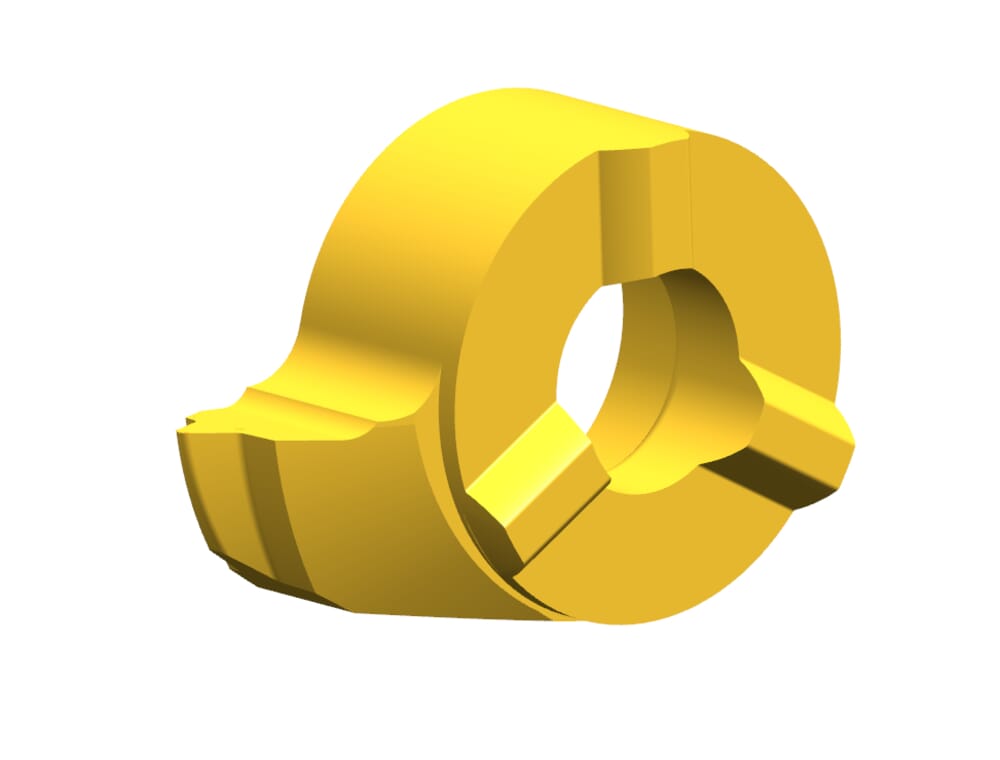

HORN insert L116.5514.02 EG55 for Gewinden
Please note:Technical instructions
ISO_SSC
HORN116110$84L$$$$$
Smallest bore diameter (Dmin)
16
mm
Cutting insert height, Cutting insert thickness (s)
5.5
mm
Setting length (E)
3.9
mm
Tooth diameter, head diameter (d)
11
mm
cutting-insert-width-met
15.7
mm
Setting range radial (f)
10.2
mm
Katalog_SSC
116110L
DIN_SSC
HORN-11611084L
eclass-shortcut
21-18-20-11
Threads per inch (TPI)
14
number-of-teeth
1
St.
Downloads | |
---|---|
L116551402_20230112_194706020.STP | Download |
L116551402.DXF | Download |
Download all files |
