L11P.0100.2.00 EG55
Insert
Part number L11P0100200EG55

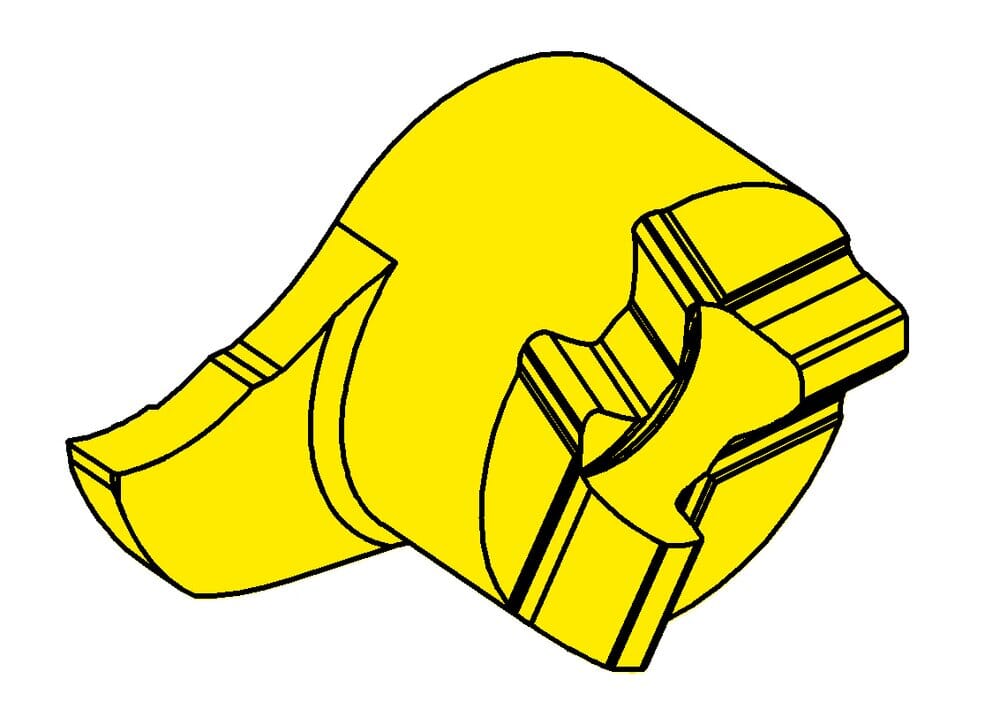

HORN Insert L11P.0100.2.00 EG55 for Turning
Please note:Technical instructions
Smallest bore diameter (Dmin)
11.5
mm
Cutting insert height, Cutting insert thickness (s)
4.2
mm
Tooth diameter, head diameter (d)
7
mm
Setting range radial (f)
7.5
mm
Width of groove (w)
1
mm
Katalog_SSC
11P070L
DIN_SSC
HORN-11P07084L
ISO_SSC
HORN11P070$84L$$$$$
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
3.5
mm
Head size (a)
11
mm
Downloads | |
---|---|
L11P0100200_20230112_194755315.STP | Download |
L11P0100200.DXF | Download |
Download all files |
