L11P.0150.2.00 EG55

Insert

Part number L11P0150200EG55

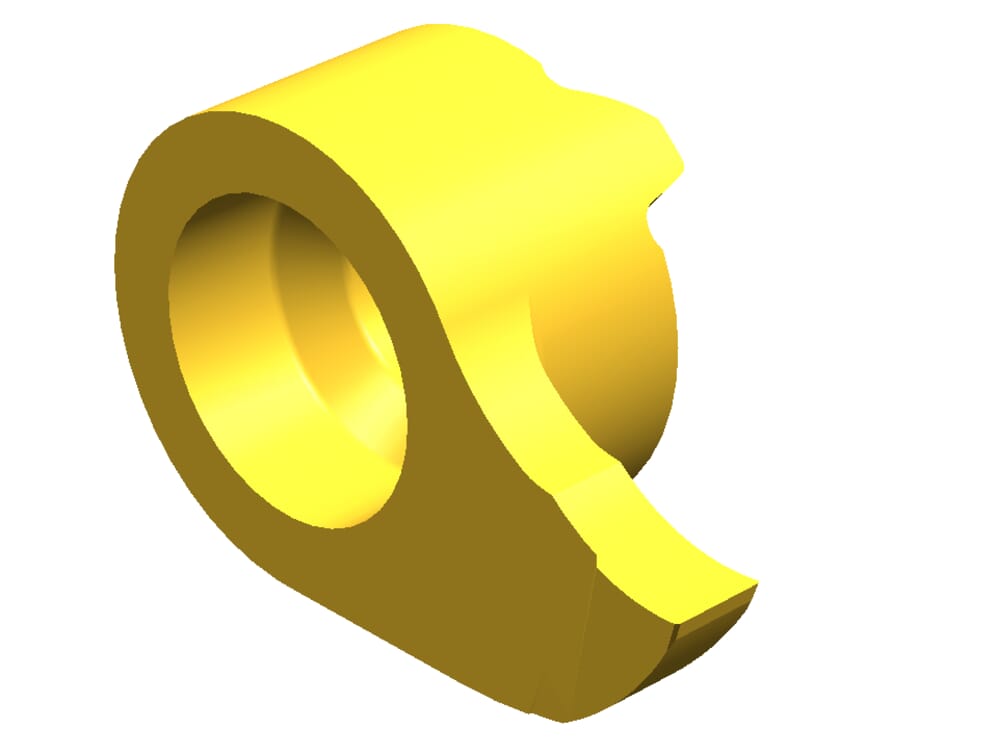

HORN Insert L11P.0150.2.00 EG55 for Turning

Head size (a)

11 mm

Maximum depth of groove (tmax)

3.5 mm

eclass-shortcut

21-18-20-11

ISO_SSC

HORN11P070$84L$$$$$

Katalog_SSC

11P070L

Width of groove (w)

1.5 mm

Setting range radial (f)

7.5 mm

Tooth diameter, head diameter (d)

7 mm

Cutting insert height, Cutting insert thickness (s)

4.2 mm

Smallest bore diameter (Dmin)

11.5 mm
