L11P.0200.1.02 EG55

Insert

Part number L11P0200102EG55

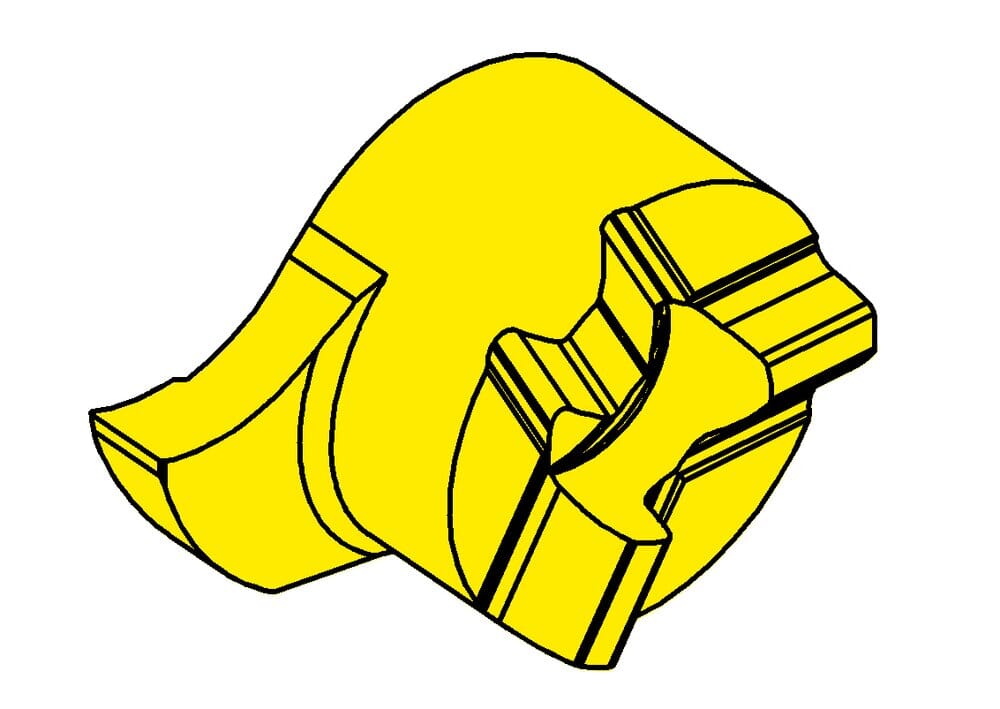

HORN Insert L11P.0200.1.02 EG55 for Turning

Tooth diameter, head diameter (d)

7 mm

eshop-note-us

Inserts ending in '.02' feature the corner radius listed in the table.

Smallest bore diameter (Dmin)

10.5 mm

Cutting insert height, Cutting insert thickness (s)

4.2 mm

Corner radius (r)

0.2 mm

Head size (a)

10 mm

Setting range radial (f)

6.5 mm

Width of groove (w)

2 mm

Katalog_SSC

11P070L

ISO_SSC

HORN11P070$84L$$$$$

eclass-shortcut

21-18-20-11

Maximum depth of groove (tmax)

2.5 mm
