L11P.1865.1.02 EG55
Insert
Part number L11P1865102EG55

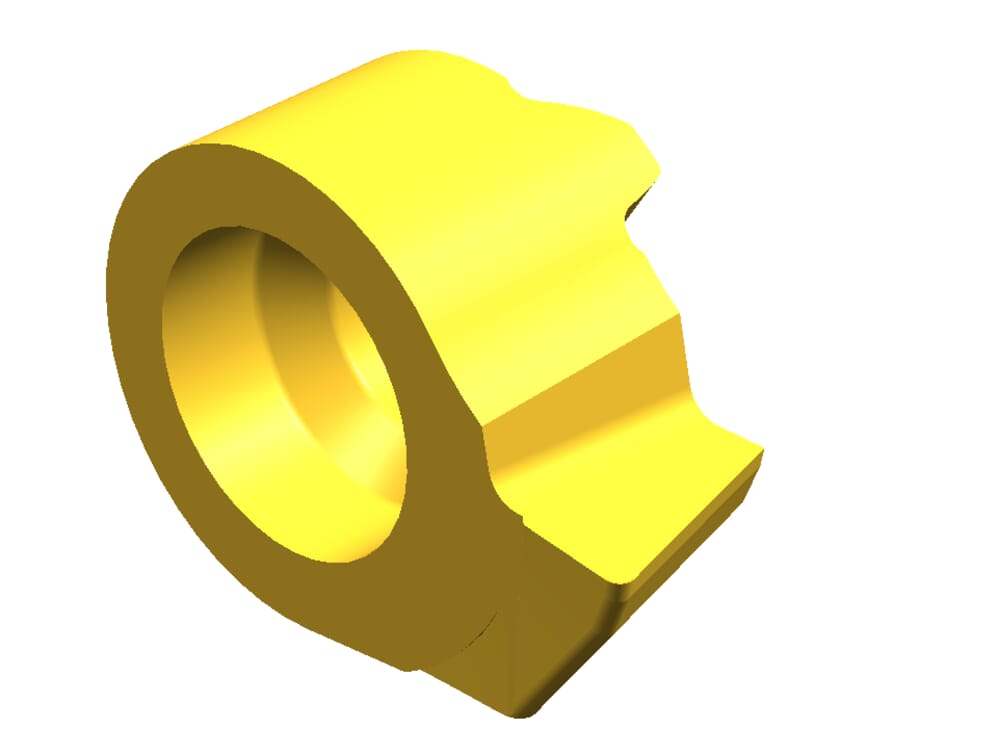

HORN Insert L11P.1865.1.02 EG55 for Turning
Please note:Technical instructions
Top radius (r)
0.2 mm
Head size (a)
10 mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN11P070$84L$$$$$
Katalog_SSC
11P070L
Setting range radial (f)
6.5 mm
Tooth diameter, head diameter (d)
7 mm
Cutting insert height, Cutting insert thickness (s)
4.2 mm
Smallest bore diameter (Dmin)
10.5 mm
| Downloads | |
|---|---|
| L11P1865102_20230112_195004719.STP | Download |
| L11P1865102_20210629_163123874.DXF | Download |
| Download all files | |
