L11P.3075.2.02 EG55
Insert
Part number L11P3075202EG55

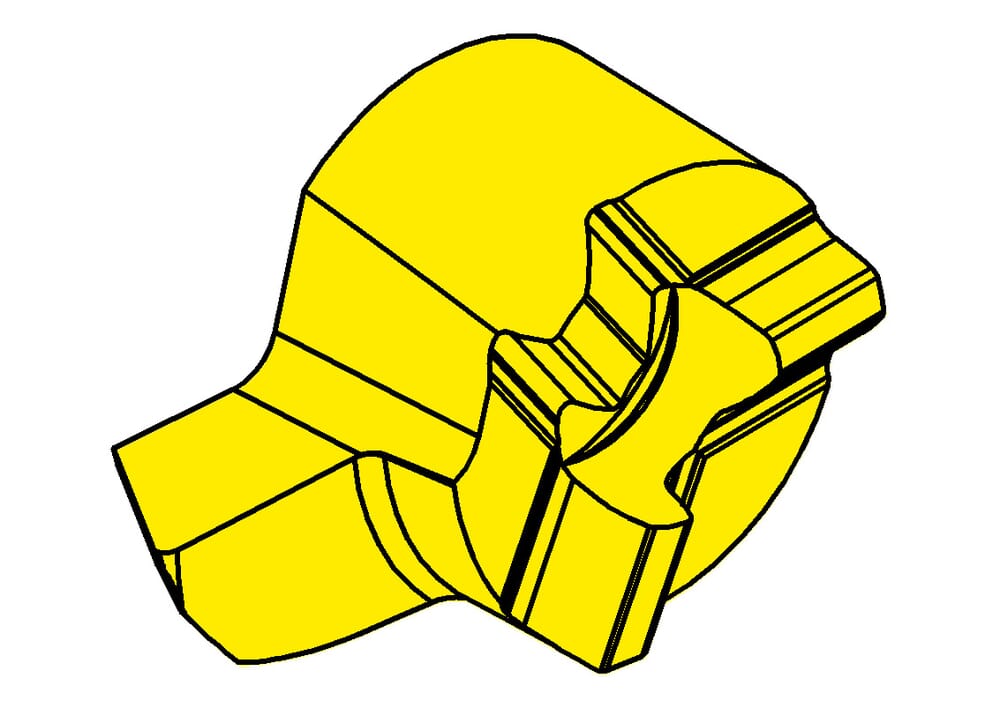

HORN Insert L11P.3075.2.02 EG55 for Turning
Please note:Technical instructions
Top radius (r)
0.2
mm
Head size (a)
11
mm
Maximum depth of groove (tmax)
3.5
mm
Cutting insert width (s1)
1.6
mm
ISO_SSC
HORN11P070$84L$$$$$
DIN_SSC
HORN-11P07084L
Katalog_SSC
11P070L
Setting range radial (f)
7.5
mm
Tooth diameter, head diameter (d)
7
mm
Cutting insert height, Cutting insert thickness (s)
4.35
mm
Smallest bore diameter (Dmin)
11.5
mm
| Downloads | |
|---|---|
| L11P3075202.STP | Download |
| L11P3075202_20240205_212059314.DXF | Download |
| Download all files | |
