L220.00C5.K2.IK

base support

Part number L22000C5K2IK

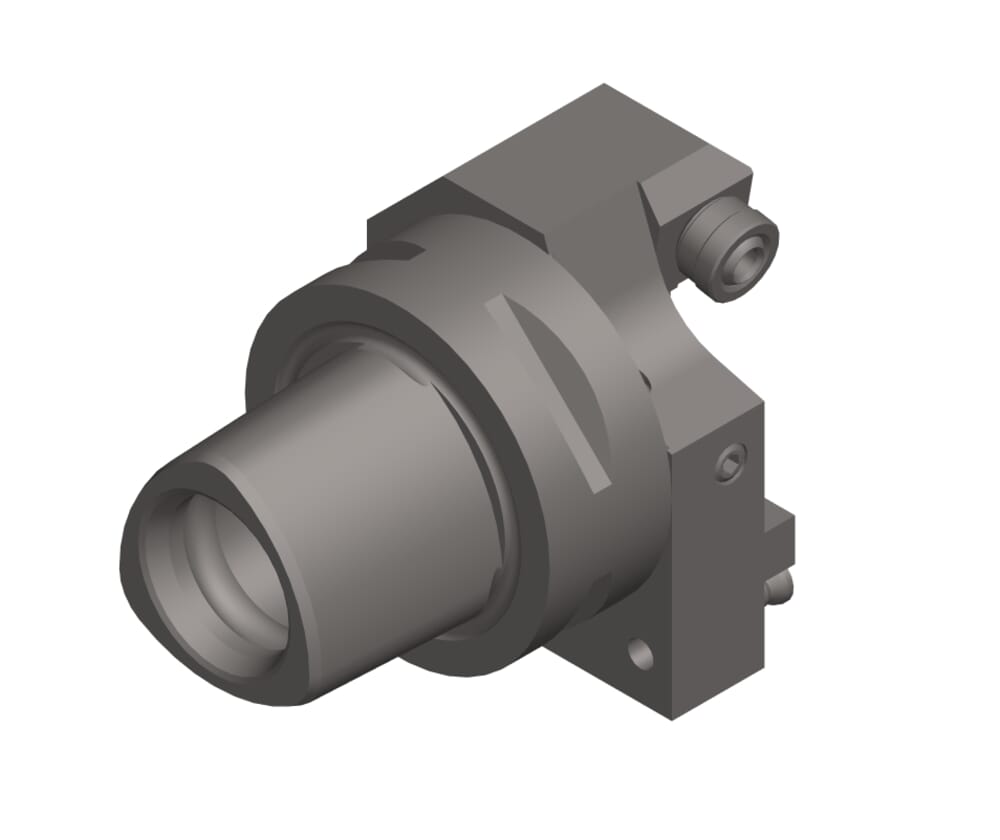

HORN base support L220.00C5.K2.IK for Turning

DIN_CCTWS

HORN-22000193;HORN-22000193;HORN-22000183;HORN-22000183

eclass-shortcut

21-18-10-18

ISO_CCTMS

CCS01C0500$$$$;CCS01C0500$$$$

DIN_CCTMS

CCS05000195;CCS05000195

Katalog_CCTWS

220001

Distance from center (h1)

12.5 mm

ISO_CCTWS

HORN22000193$$;HORN22000193$$;HORN22000183$$;HORN22000183$$

Length assembly formula (l)

l1+f3

Adjustment dimension (formula) (f)

f1+lK

Length from bore (l2)

50.5 mm

Adjustment dimension (f1)

15 mm

Bore diameter rotate (d1)

50 mm

System cassette from the collar (l1)

35.2 mm
