LA315.0815.45.04R TH35
Insert
Part number LA31508154504RTH35

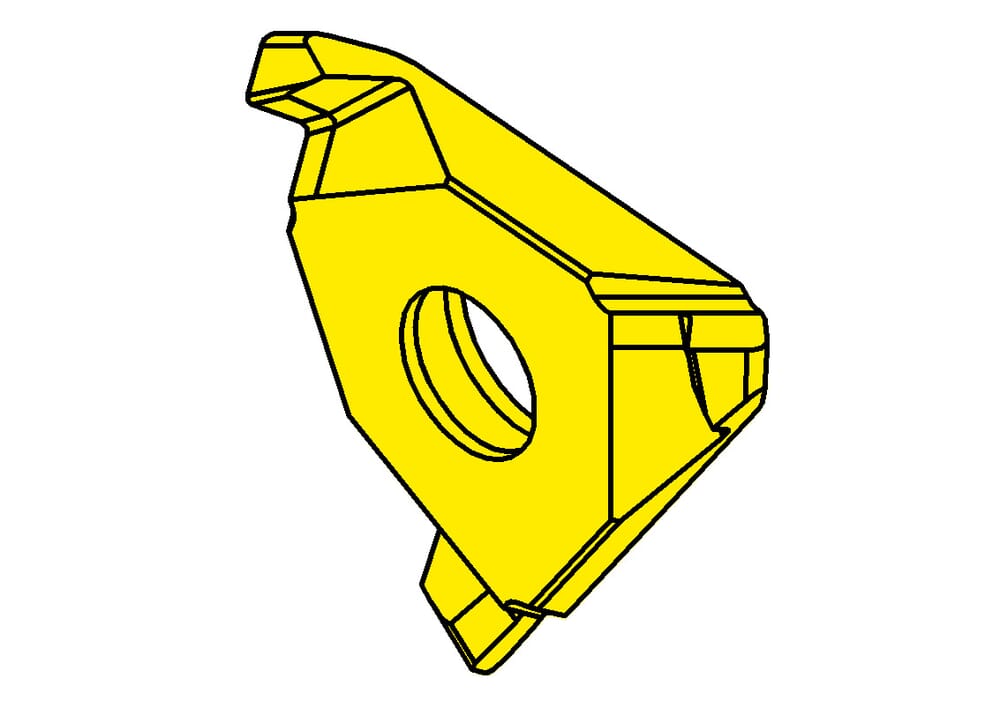

HORN Insert LA315.0815.45.04R TH35 for Turning
Please note:Technical instructions
Maximum depth of groove (tmax)
1.6 mm
Smallest workpiece diameter (Da min)
8 mm
ISO_SSC
HORN31503$051L$$$$$
Katalog_SSC
31503L
Plating seat size (Größe)
3
Width of groove (w)
1.5 mm
Cutting insert width (s)
3.25 mm
Corner radius (r)
0.4 mm
eclass-shortcut
21-18-20-01
| Downloads | |
|---|---|
| LA315_0815_45_04R_TH35-DXF.DXF | Download |
| LA315_0815_45_04R_TH35-STP.STP | Download |
| LA315_0815_45_04R_TH35-ISO.XML | Download |
| LA315_0815_45_04R_TH35-DIN.XML | Download |
| Download all files | |
