LNK229.0845.25.4.75.IK

Cartridge

Part number LNK229084525475IK

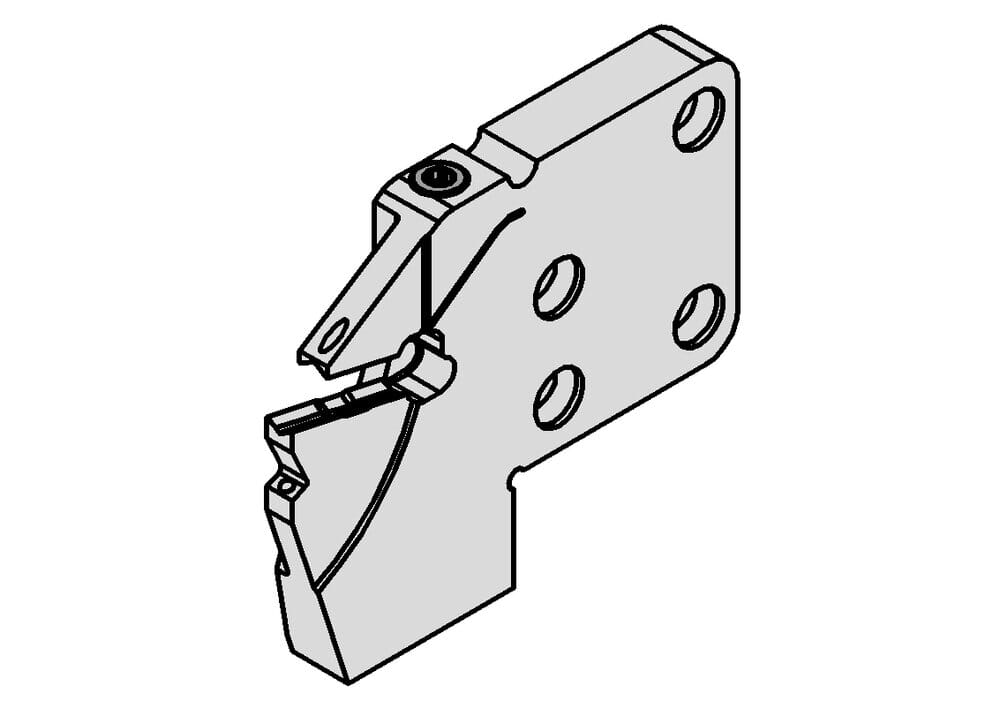

HORN Cartridge LNK229.0845.25.4.75.IK for Turning

DIN_CCTMS

HORN-84500293;HORN-84500193

eclass-shortcut

21-18-10-04

Width of groove (w)

5 mm

Katalog_CCTMS

845002;845001

ISO_CCTMS

HORN84500293$$;HORN84500193$$

Adjustment dimension cutting center (f2)

7.7 mm

Katalog_CCTWS

229040

DIN_CCTWS

HORN-229040108N

ISO_CCTWS

HORN229040108N$$$$$

Adjustment dimension of system cassette formula (f3)

f2+ w/2

Maximum workpiece diameter (Dmax)

68 mm

Maximum depth of groove (tmax)

25 mm

Length of unit cassette to cutting edge (lK)

41 mm

Total length (including cutting insert) (l1)

81 mm
