LS310.3017.15 AS45
Insert
Part number LS310301715AS45

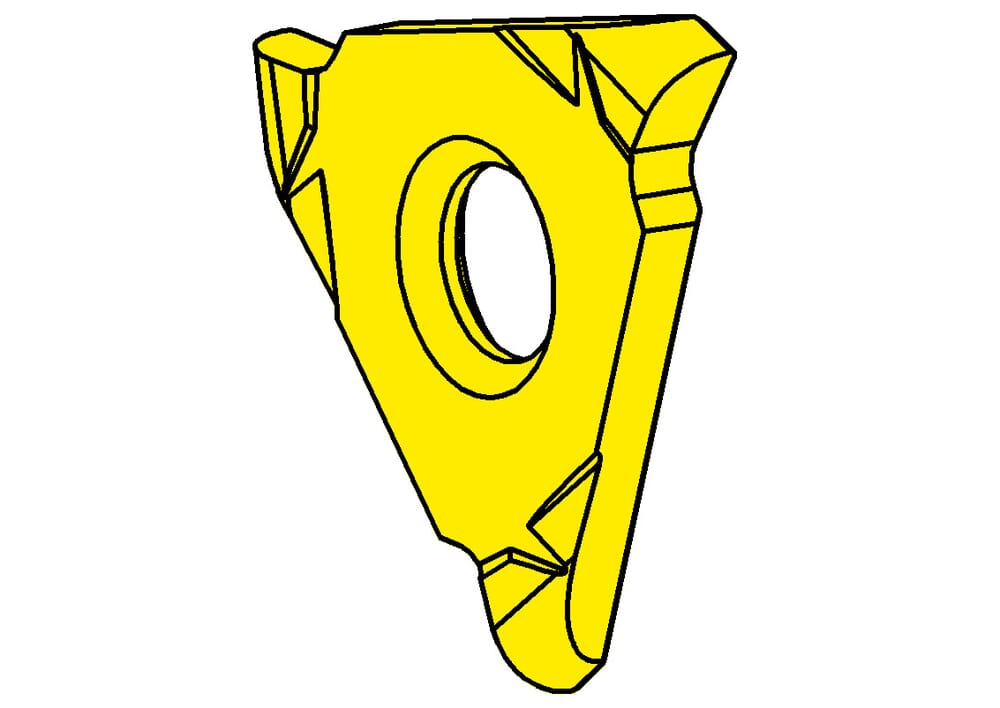

HORN Insert LS310.3017.15 AS45 for Milling
Please note:Technical instructions
ISO_SSC
HORN310017101L$$$$$
Katalog_SSC
310017L
Width of groove (w)
3 mm
Radius, full-radius (r)
1.5 mm
Cutting insert thickness (Plant to cutting edge) (bs)
1.7 mm
Plate thickness without cutting edge (s)
1.57 mm
eclass-shortcut
21-18-20-01
| Downloads | |
|---|---|
| LS310_3017_15_AS45-ISO.XML | Download |
| LS310_3017_15_AS45-DXF.DXF | Download |
| LS310_3017_15_AS45-STP.STP | Download |
| LS310_3017_15_AS45-DIN.XML | Download |
| Download all files | |
