M101.0080.28.20
Toolholder
Part number M10100802820

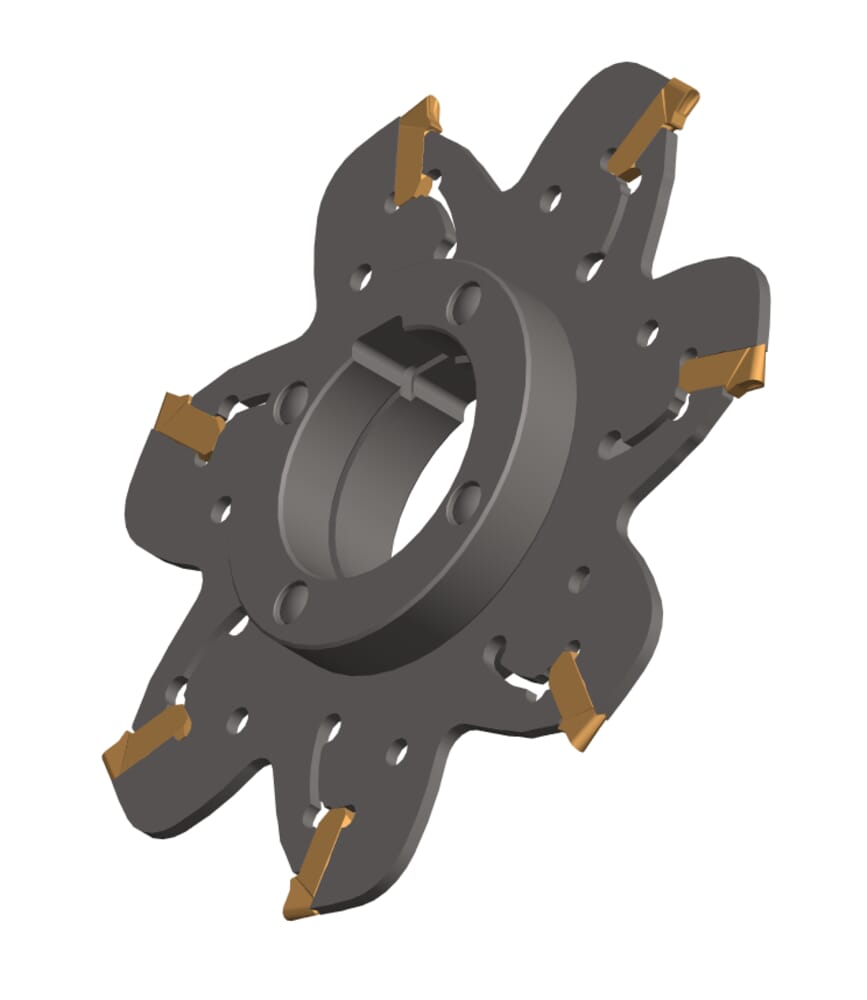

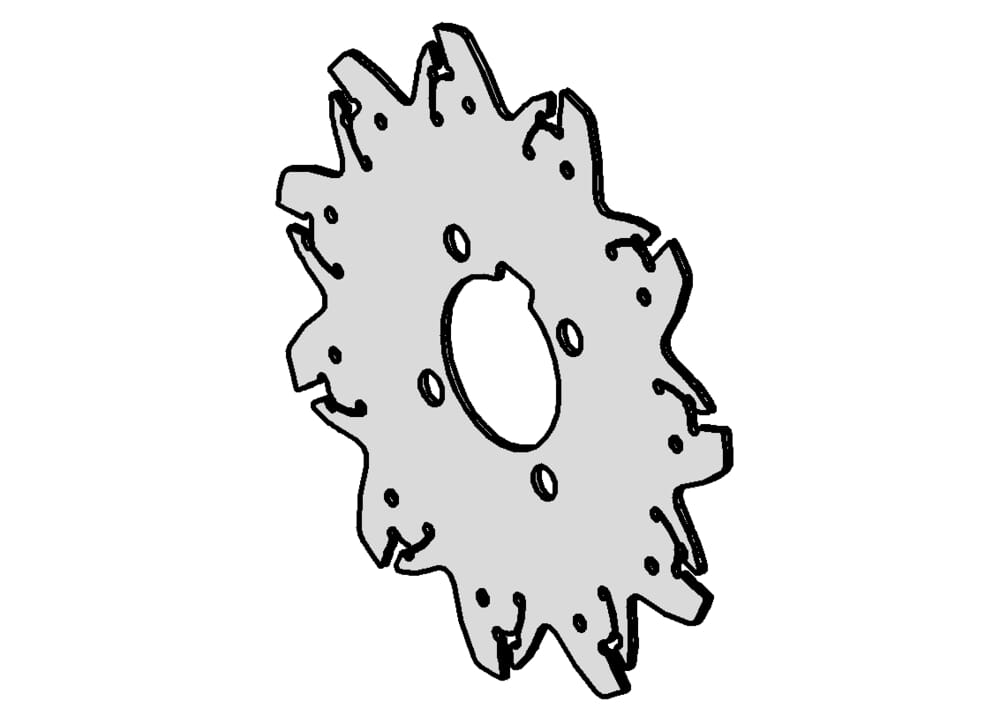

HORN Toolholder M101.0080.28.20 for Milling
Please note:Technical instructions
Cutting width maximum (Schneidbreite)
2.3 mm
milling-body-wide-met
1.6 mm
Number of revolutions maximum (nmax)
6000 1/min
Cutting width minimum (Schneidbreite)
2 mm
Diameter for through hole (d6)
4.25 mm
Diameter of driver ring (d4)
36 mm
Total width with drive rings (b2)
13.1 mm
Maximum milling depth/ depth of groove (tmax)
20 mm
Cutting diameter (Ds)
80 mm
Mounting hole diameter (d2)
28 mm
Wide disc cutter without cutting insert (b)
1.6 mm
ISO_CCTMS
FDA01G2200$$$$
DIN_CCTMS
FDA02200100
Katalog_CCTWS
10120
DIN_CCTWS
HORN-101200058N
ISO_CCTWS
HORN101200058N$$$$$
Number of teeth (Z)
7 St.
Bore diameter miller body (d5)
31 mm
| Downloads | |
|---|---|
| M101_0080_28_20-DXF.DXF | Download |
| M101_0080_28_20-STP.STP | Download |
| M101_0080_28_20-ISO.XML | Download |
| M101_0080_28_20-DIN.XML | Download |
| Download all files | |
