M306.0712.02E
Toolholders
Part number M306071202E

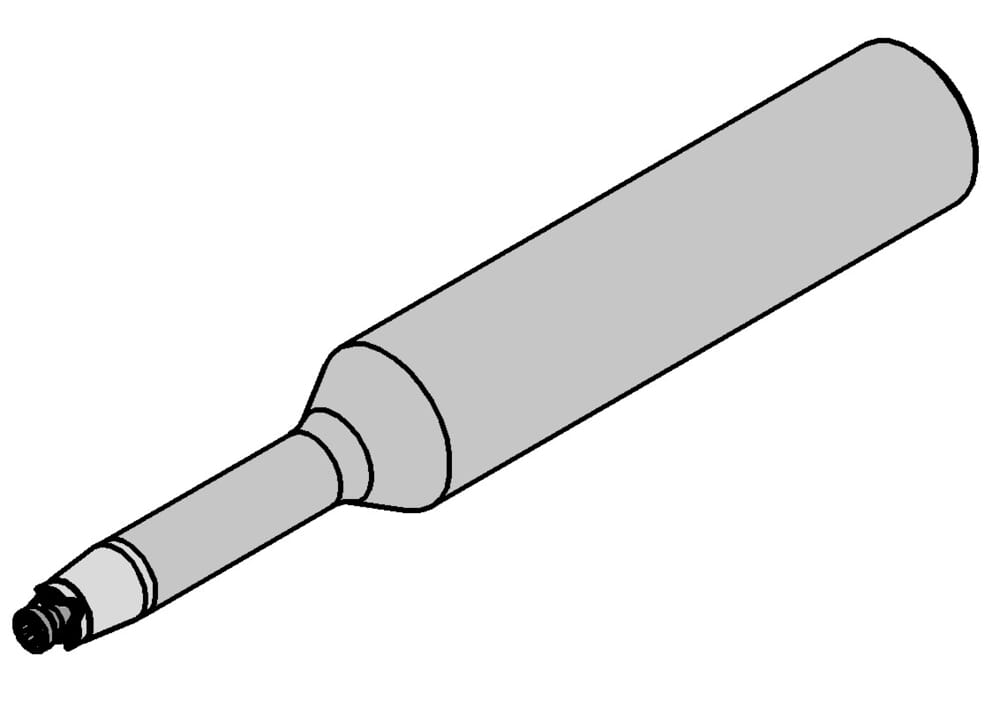

HORN Toolholders M306.0712.02E for Milling
Please note:Technical instructions
ISO_CCTWS
HORN306060$84R$$$$$;HORN306060$84L$$$$$
Form (Form)
HE

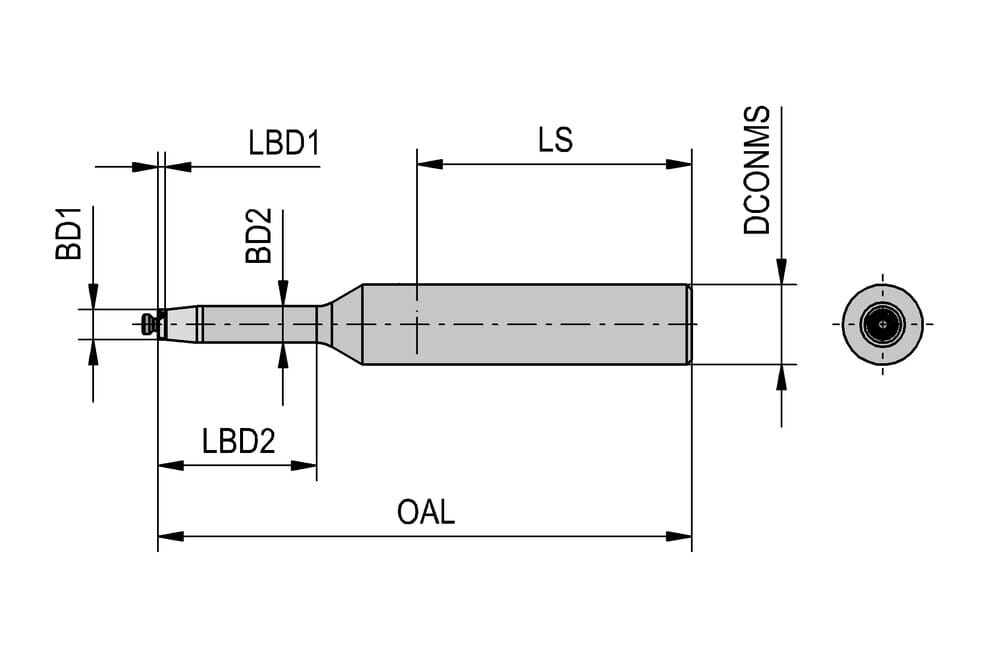

Working length, Neck length, Extension length (l2)
30 mm
Total length insert (l1)
90 mm
Neck diameter (d1)
7.3 mm
ISO_CCTMS
ZYL13G1200h$06
DIN_CCTMS
ZYL01205315
Katalog_CCTWS
306060R;306060L
DIN_CCTWS
HORN-30606084R;HORN-30606084L
eclass-shortcut
21-18-08-90
Shank diameter (d)
12 mm
| Downloads | |
|---|---|
| M306_0712_02E-DXF.DXF | Download |
| M306_0712_02E-STP.STP | Download |
| M306_0712_02E-ISO.XML | Download |
| M306_0712_02E-DIN.XML | Download |
| Download all files | |
