M311.ST10.01A
Toolholders
Part number M311ST1001A

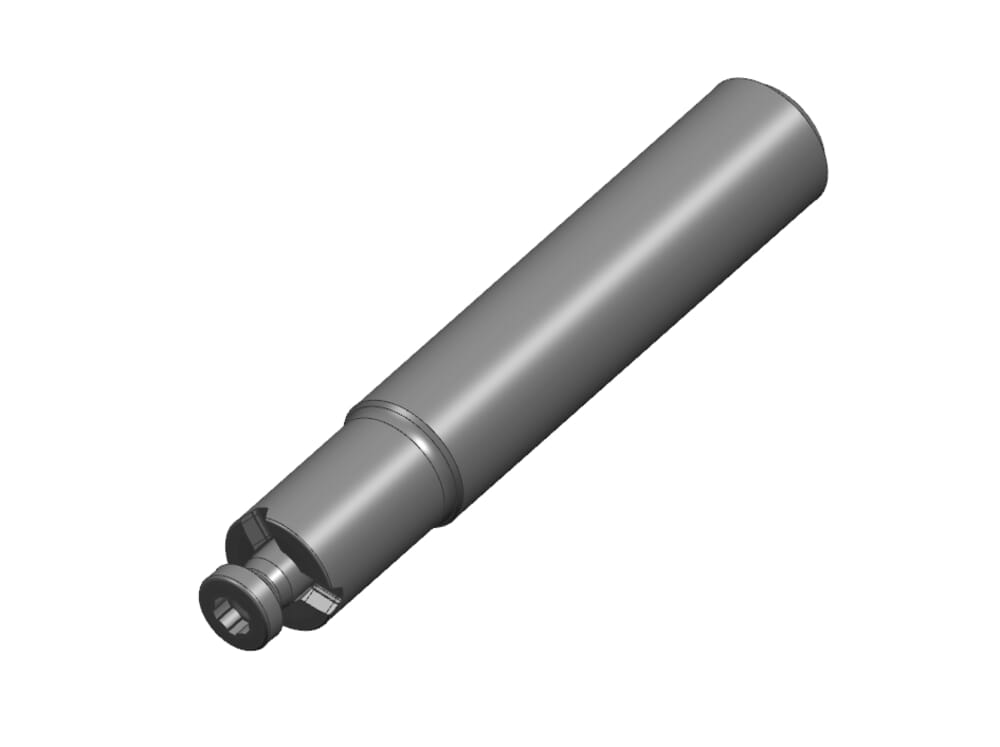

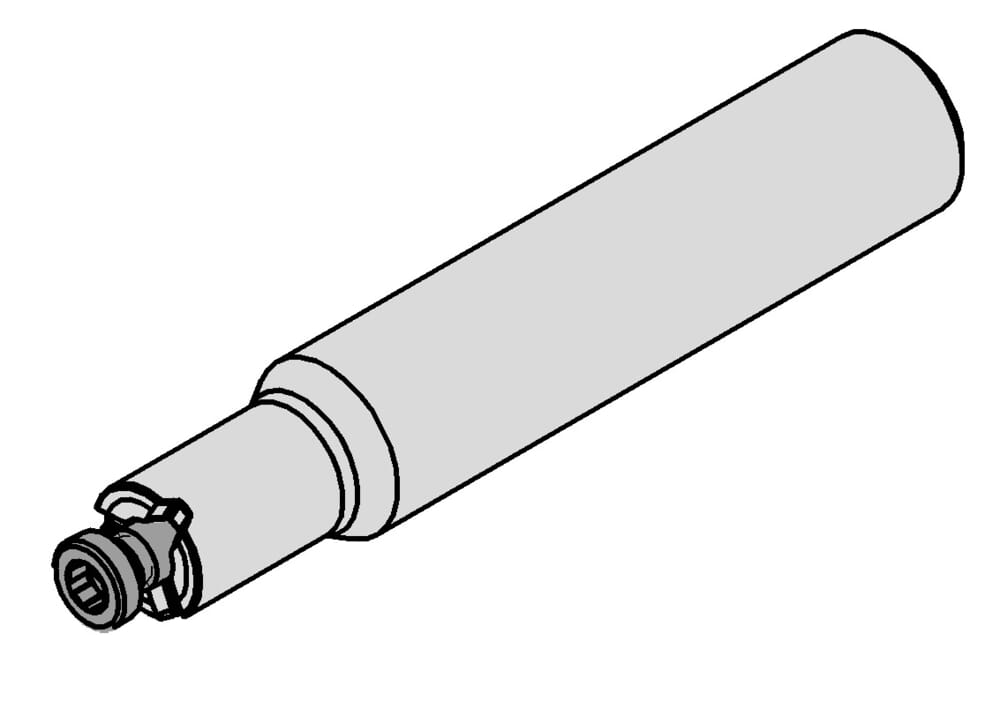

HORN Toolholders M311.ST10.01A for Milling
Please note:Technical instructions
Katalog_CCTWS
311090R
eclass-shortcut
21-18-08-90
Form (Form)
A
Working length, Neck length, Extension length (l2)
18 mm
Total length insert (l1)
60 mm
Neck diameter (d1)
9 mm
ISO_CCTMS
ZYL01G1000h$06
DIN_CCTMS
ZYL01000105
DIN_CCTWS
HORN31109084R
ISO_CCTWS
HORN311090$84R$$$$$
Shank diameter (d)
10 mm
| Downloads | |
|---|---|
| M311_ST10_01A-DXF.DXF | Download |
| M311_ST10_01A-STP.STP | Download |
| M311_ST10_01A-DIN.XML | Download |
| M311_ST10_01A-ISO.XML | Download |
| Download all files | |
