R105.0045.0.1 EG35
Inserts
Part number R105004501EG35

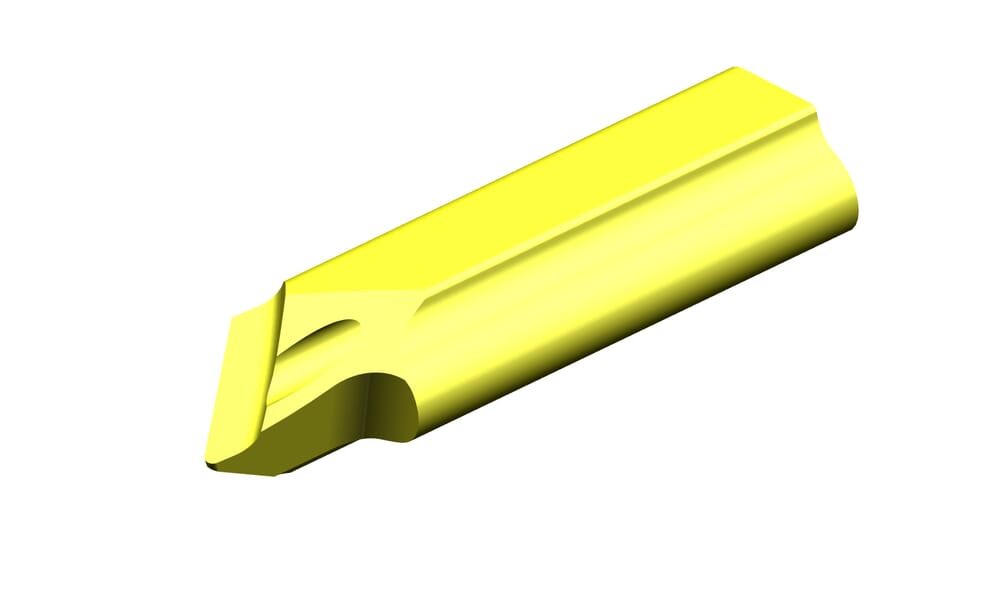

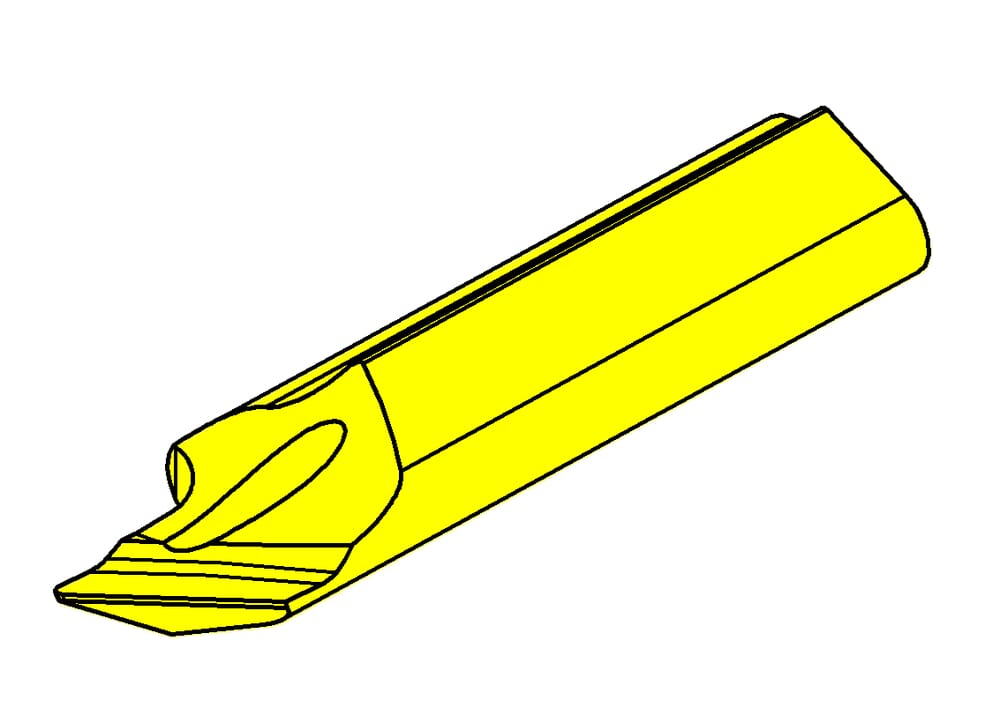

HORN Inserts R105.0045.0.1 EG35 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11

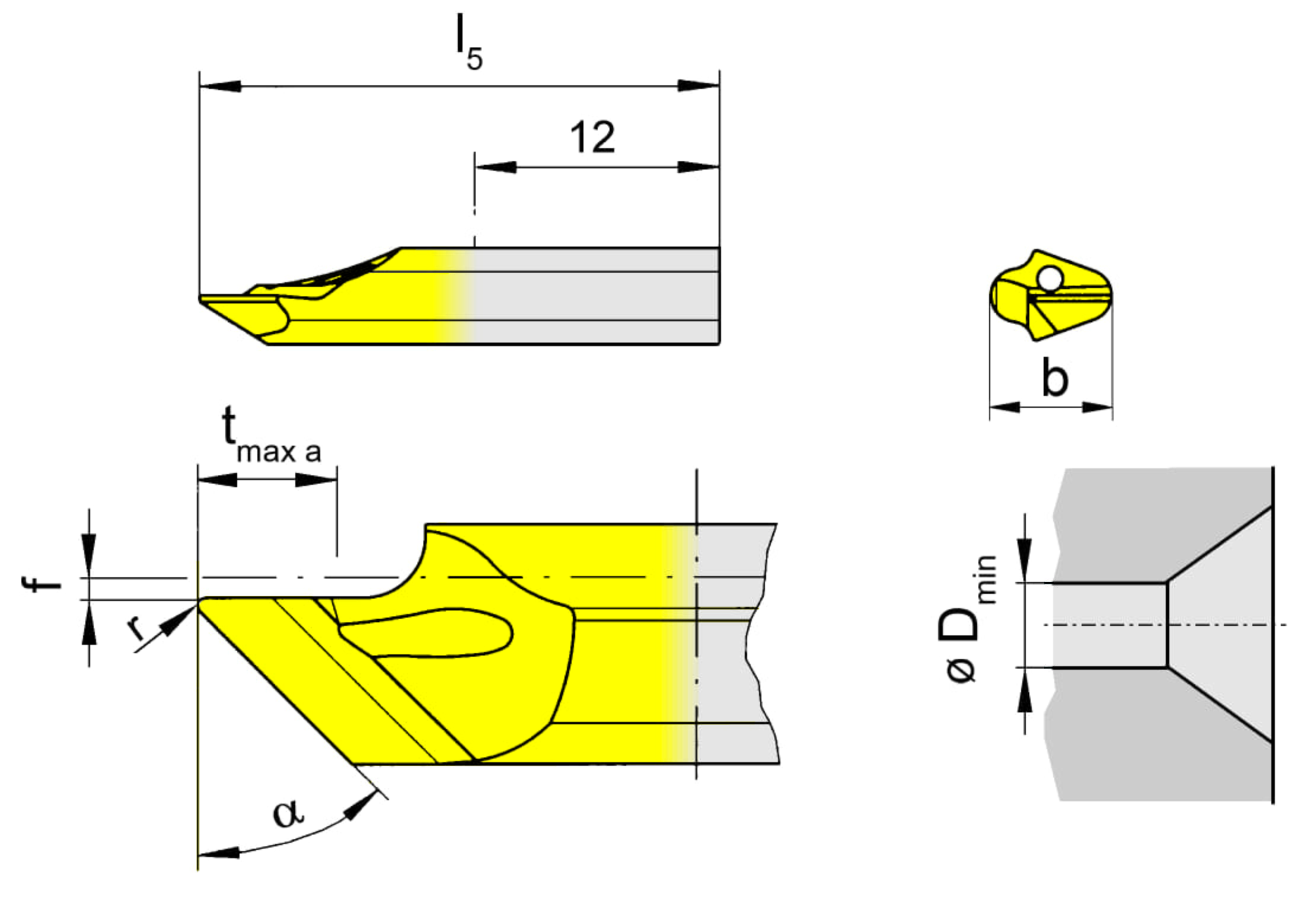

Smallest bore diameter (Dmin)
1
mm
Total length (l5)
20
mm
Setting range radial (f)
0.5
mm
Katalog_SSC
105123
DIN_SSC
HORN-10512395N
ISO_SSC
HORN105123$95N$$$$$
Width of blank (b)
5.9
mm
Maximum depth of groove (tmax a)
3.5
mm
Free angle (α)
45
°
Top radius (r)
0.2
mm
| Downloads | |
|---|---|
| R105004501_20230114_025257075.STP | Download |
| R105004501_20210626_022838219.DXF | Download |
| Download all files | |
