R105.0050.0.2 EG35
Insert
Part number R105005002EG35

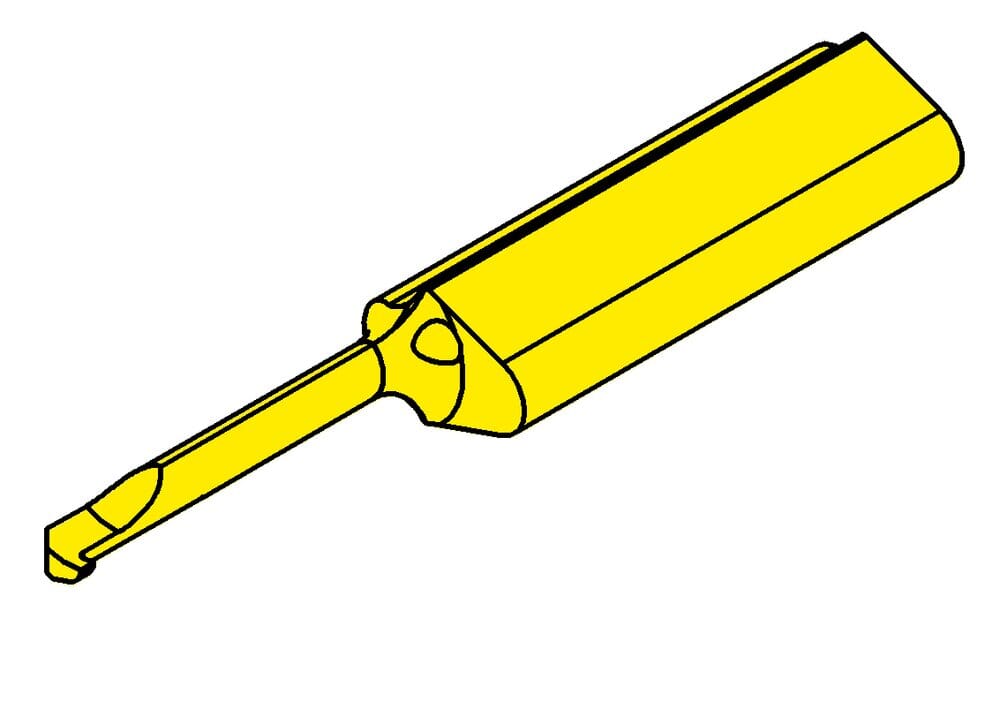

HORN Insert R105.0050.0.2 EG35 for Turning
Please note:Technical instructions
Width of groove (w)
0.5 mm
Smallest bore diameter (Dmin)
2 mm
Total length (l5)
25 mm
Setting range radial (f)
1.4 mm
Neck diameter (d)
1.2 mm
Neck length (l2)
6 mm
Katalog_SSC
105123
ISO_SSC
HORN105123$95N$$$$$
Width of blank (b)
5.9 mm
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
0.4 mm
Head size (a)
1.8 mm
| Downloads | |
|---|---|
| R105_0050_0_2_EG35-DXF.DXF | Download |
| R105_0050_0_2_EG35-STP.STP | Download |
| R105_0050_0_2_EG35-ISO.XML | Download |
| R105_0050_0_2_EG35-DIN.XML | Download |
