R105.0050.0.2 TI25
Insert
Part number R105005002TI25

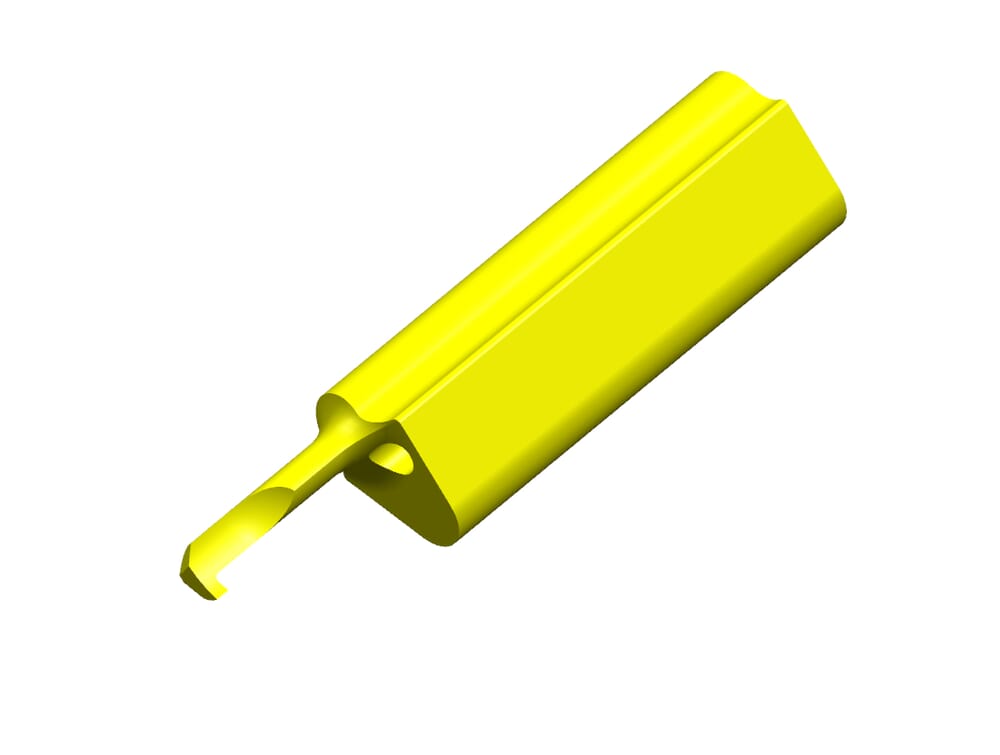

HORN Insert R105.0050.0.2 TI25 for Turning
Please note:Technical instructions
Width of blank (b)
5.9
mm
Smallest bore diameter (Dmin)
2
mm
Total length (l5)
25
mm
Setting range radial (f)
1.4
mm
Neck diameter (d)
1.2
mm
Width of groove (w)
0.5
mm
Katalog_SSC
105123
DIN_SSC
HORN-10512395N
ISO_SSC
HORN105123$95N$$$$$
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
0.4
mm
Head size (a)
1.8
mm
Neck length (l2)
6
mm
| Downloads | |
|---|---|
| R105005002_20230113_231121472.STP | Download |
| R105005002_20210626_022934032.DXF | Download |
| Download all files | |
