R105.0100.5.6 TN35
Inserts
Part number R105010056TN35

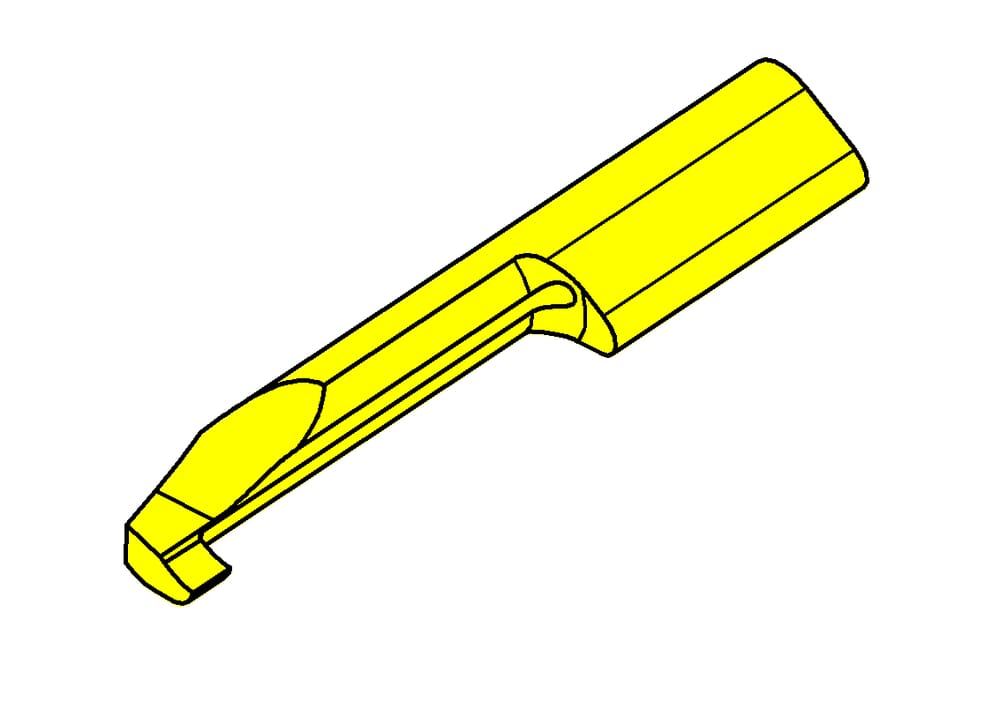

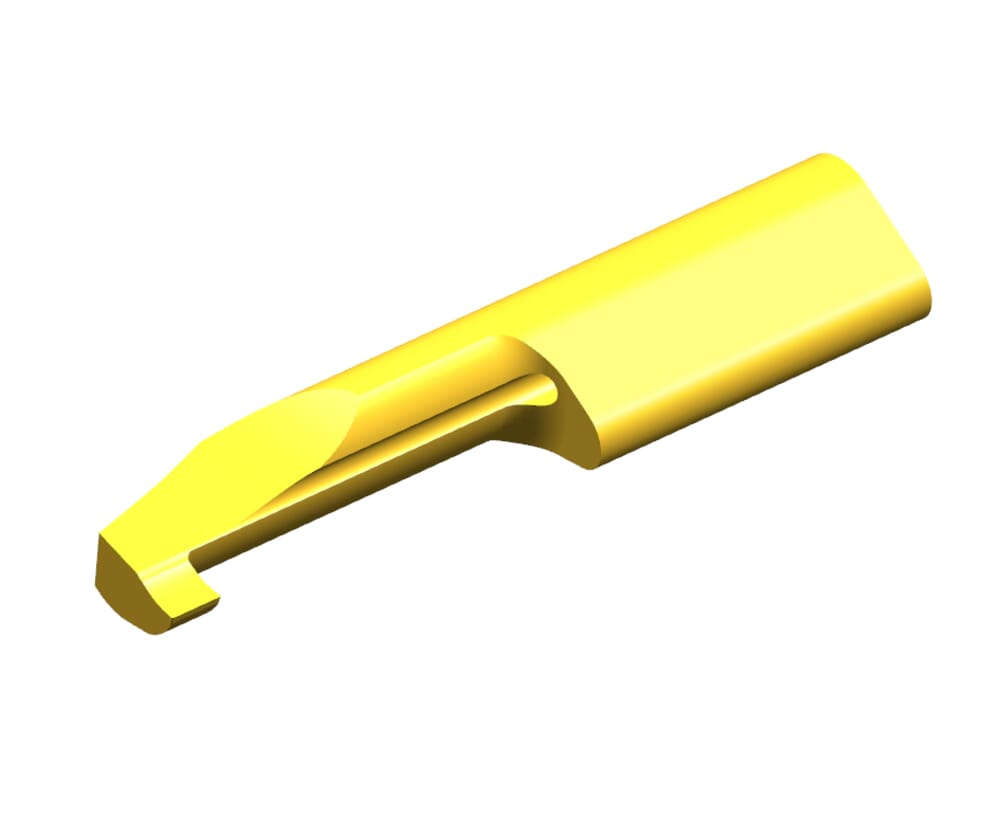

HORN Inserts R105.0100.5.6 TN35 for Turning
Please note:Technical instructions

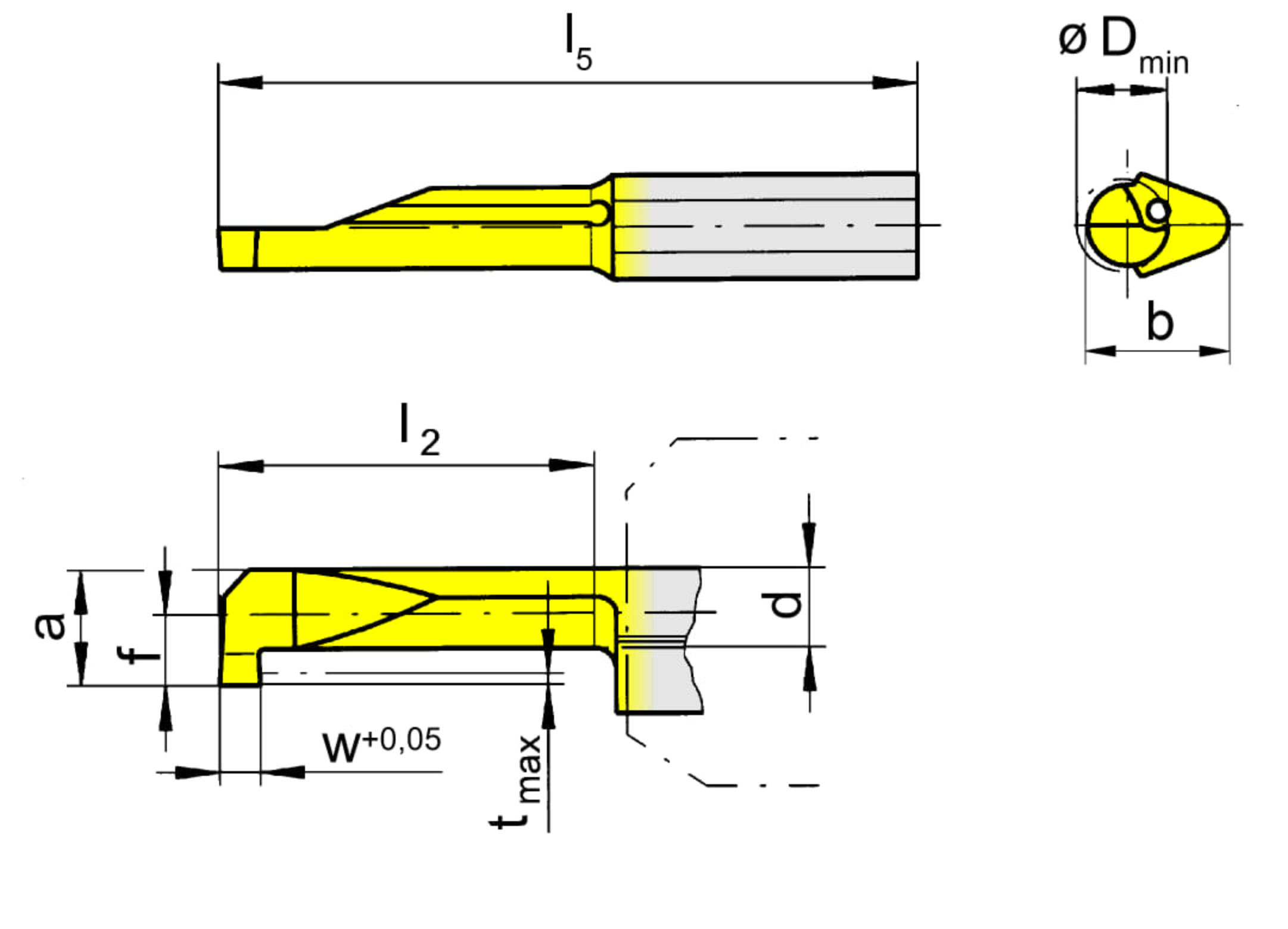

Width of blank (b)
7
mm
Smallest bore diameter (Dmin)
6
mm
Total length (l5)
45
mm
Setting range radial (f)
3.3
mm
Neck diameter (d)
3.7
mm
Width of groove (w)
1
mm
Katalog_SSC
105125
DIN_SSC
HORN-10512595N
ISO_SSC
HORN105125$95N$$$$$
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
1.8
mm
Head size (a)
5.7
mm
Neck length (l2)
30
mm
| Downloads | |
|---|---|
| R105010056_20240118_082740565.STP | Download |
| R105010056.DXF | Download |
| Download all files | |
