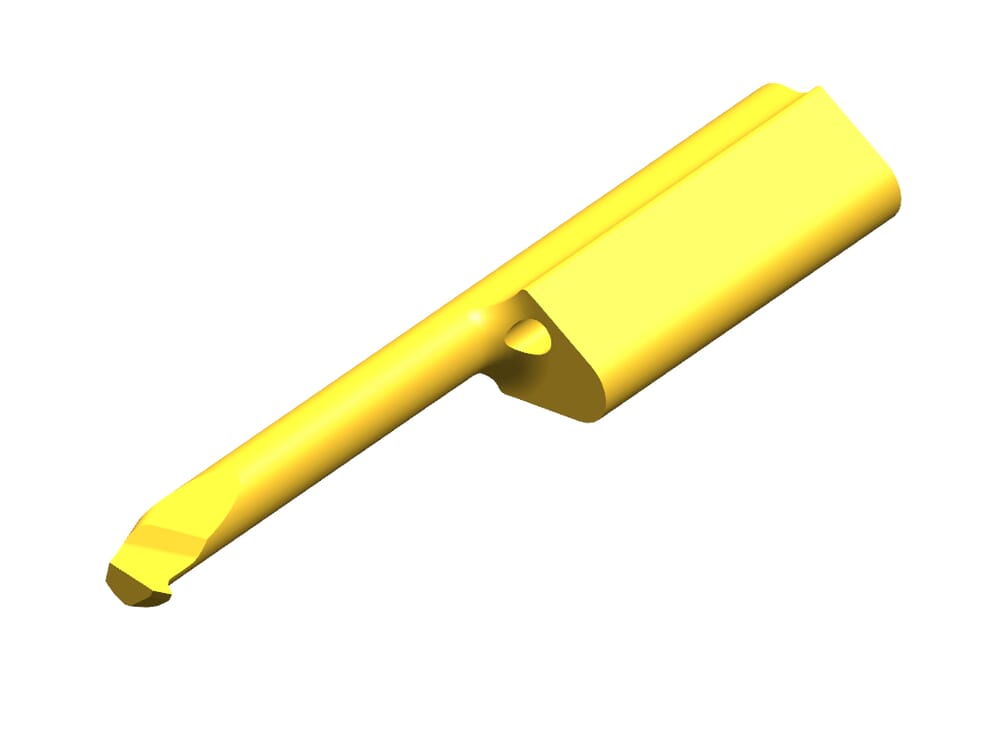

R105.0102.2.3 EG35
Insert
Part number R105010223EG35
HORN Insert R105.0102.2.3 EG35 for Gewinden
Please note:Technical instructions
Pitch (P)
0.25
mm
Smallest bore diameter (Dmin)
3
mm
Setting length (E)
0.3
mm
Cutting insert width (a)
2.7
mm
Setting range radial (f)
1.4
mm
Neck diameter (d)
2.2
mm
Katalog_SSC
105123
DIN_SSC
HORN-10512395N
ISO_SSC
HORN105123$95N$$$$$
Width of blank (b)
5.9
mm
eclass-shortcut
21-18-20-11
Cutting insert total length (l5)
30
mm
number-of-teeth
1
St.
Neck length (l2)
15
mm
