R105.0150.2.7 TN35
Inserts
Part number R105015027TN35

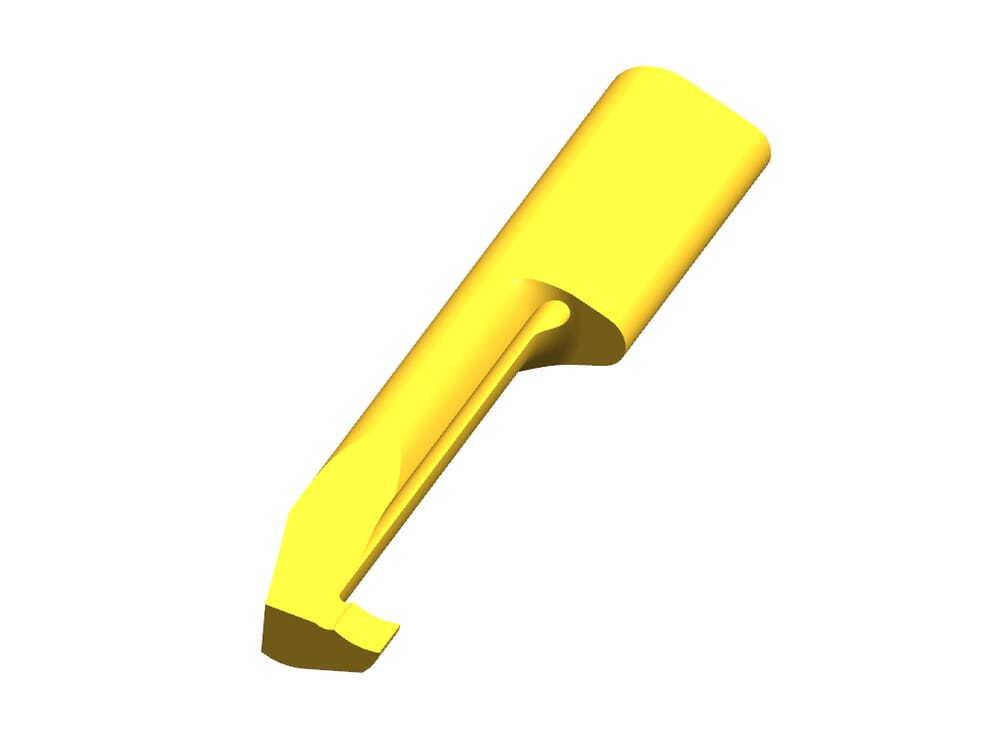

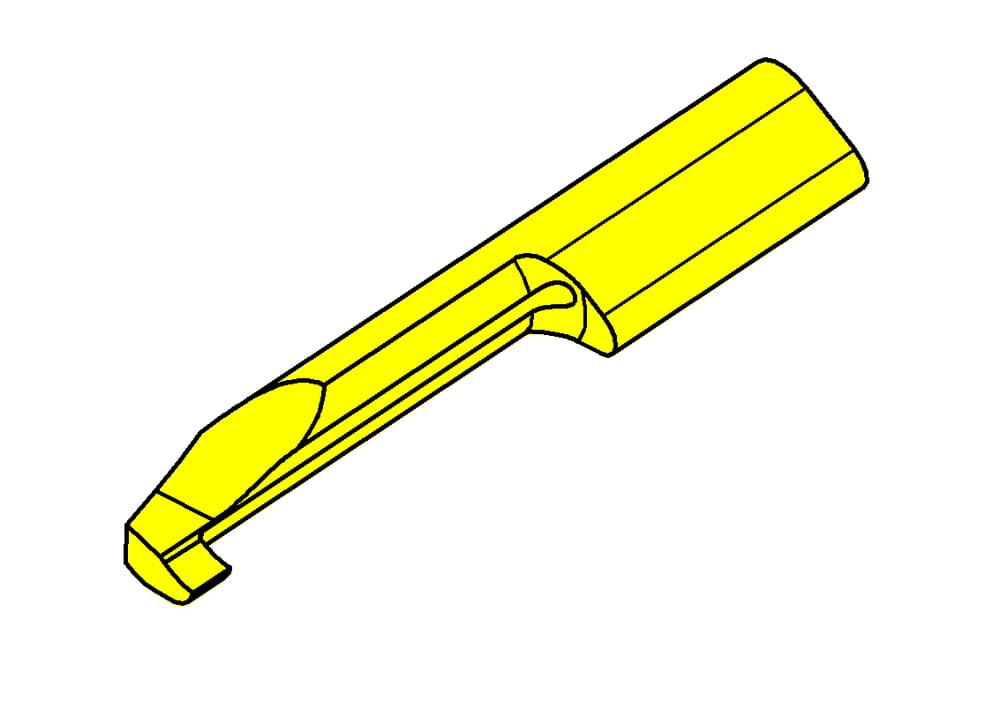

HORN Inserts R105.0150.2.7 TN35 for Turning

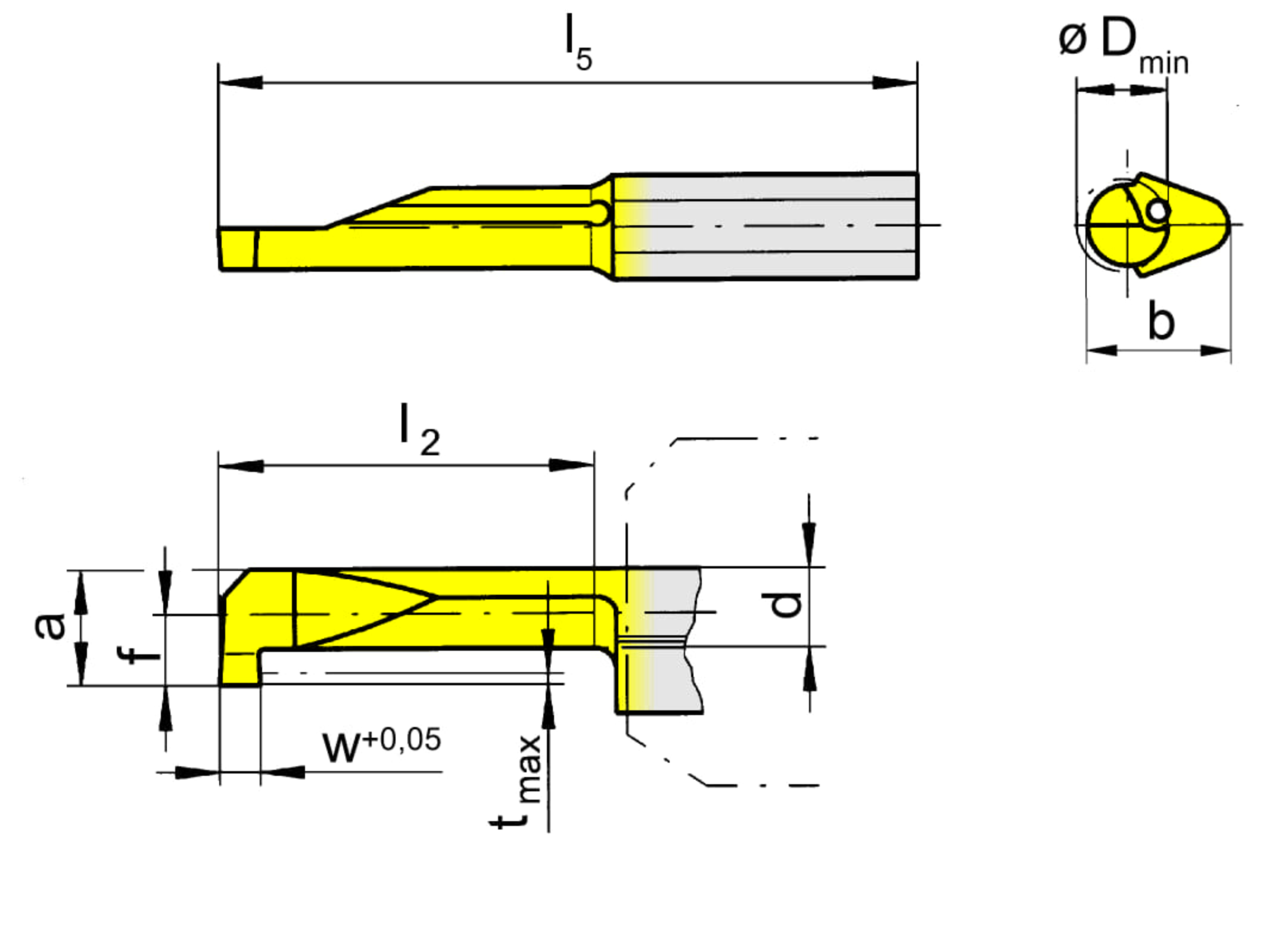

Please note:Technical instructions
Width of blank (b)
7
mm
Smallest bore diameter (Dmin)
6.8
mm
Total length (l5)
30
mm
Setting range radial (f)
4
mm
Neck diameter (d)
3.7
mm
Width of groove (w)
1.5
mm
Katalog_SSC
105125
DIN_SSC
HORN-10512595N
ISO_SSC
HORN105125$95N$$$$$
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
2.5
mm
Head size (a)
6.4
mm
Neck length (l2)
15
mm
| Downloads | |
|---|---|
| R105015027_20210630_150228113.STP | Download |
| R105015027.DXF | Download |
| Download all files | |
