R105.0810.2.3 EG35
Insert
Part number R105081023EG35

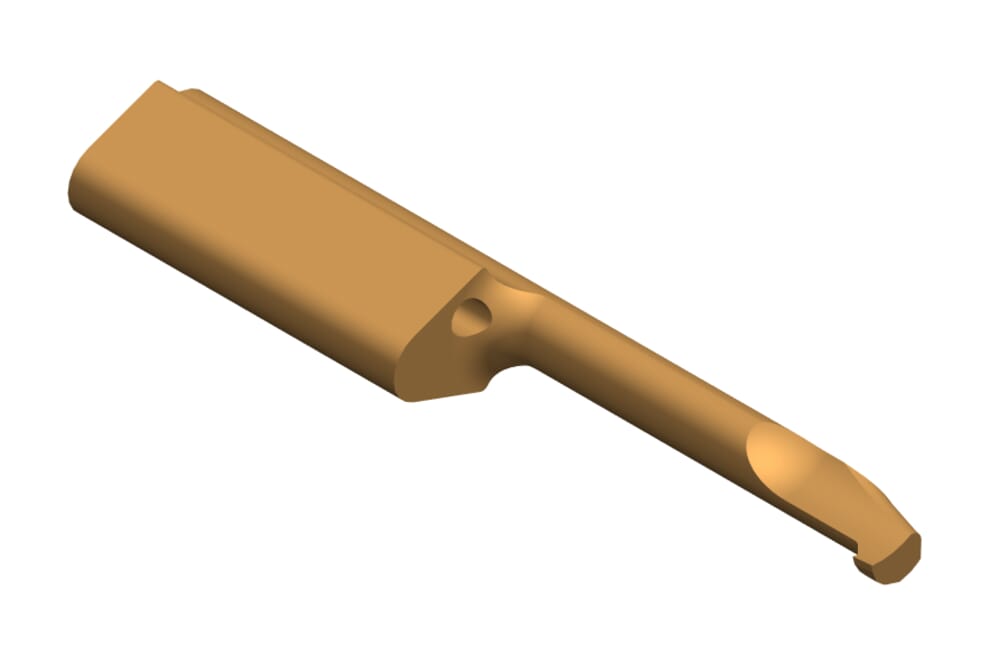

HORN Insert R105.0810.2.3 EG35 for Turning
Please note:Technical instructions
Depth of pre-groove (t1)
0.2
mm
Smallest bore diameter (Dmin)
3
mm
Total length (l5)
30
mm
Setting range radial (f)
1.4
mm
Neck diameter (d)
2
mm
Width of groove (w)
0.7
mm
Katalog_SSC
105123
DIN_SSC
HORN-10512395N
ISO_SSC
HORN105123$95N$$$$$
Width of blank (b)
5.9
mm
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
0.5
mm
Head size (a)
2.7
mm
Neck length (l2)
15
mm
