R105.0810.7.6 EG35
Insert
Part number R105081076EG35

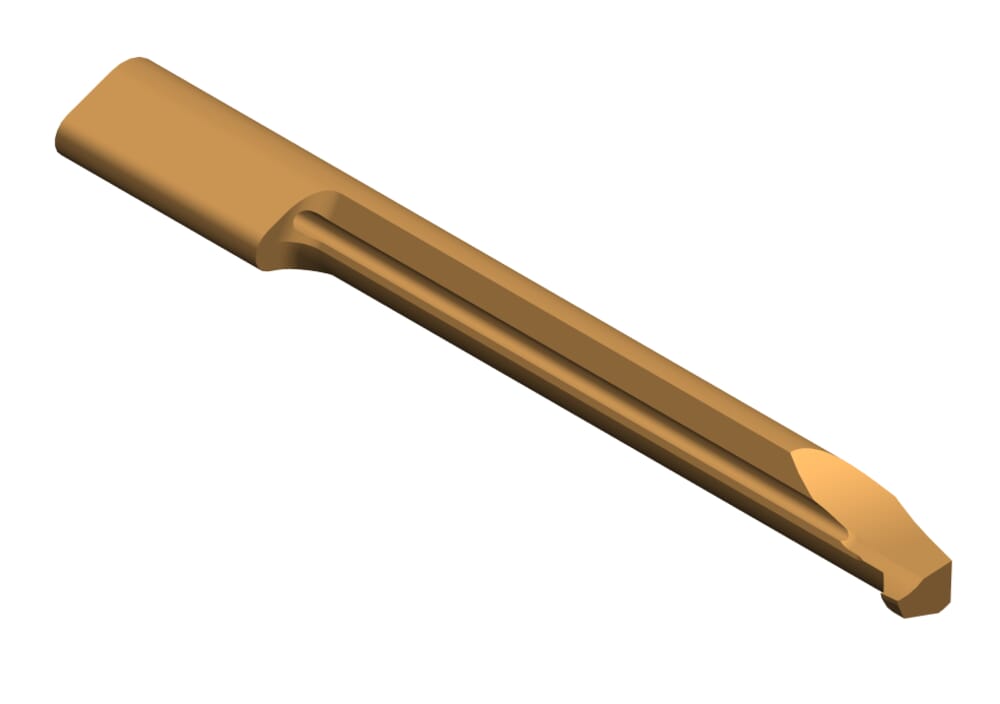

HORN Insert R105.0810.7.6 EG35 for Turning
Please note:Technical instructions
Depth of pre-groove (t1)
0.2
mm
Smallest bore diameter (Dmin)
6
mm
Total length (l5)
55
mm
Setting range radial (f)
3.1
mm
Neck diameter (d)
4.2
mm
Width of groove (w)
1
mm
Katalog_SSC
105125
DIN_SSC
HORN-10512595N
ISO_SSC
HORN105125$95N$$$$$
Width of blank (b)
7
mm
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
1
mm
Head size (a)
5.5
mm
Neck length (l2)
40
mm
