R105.1002.1.4.HF.P PD75

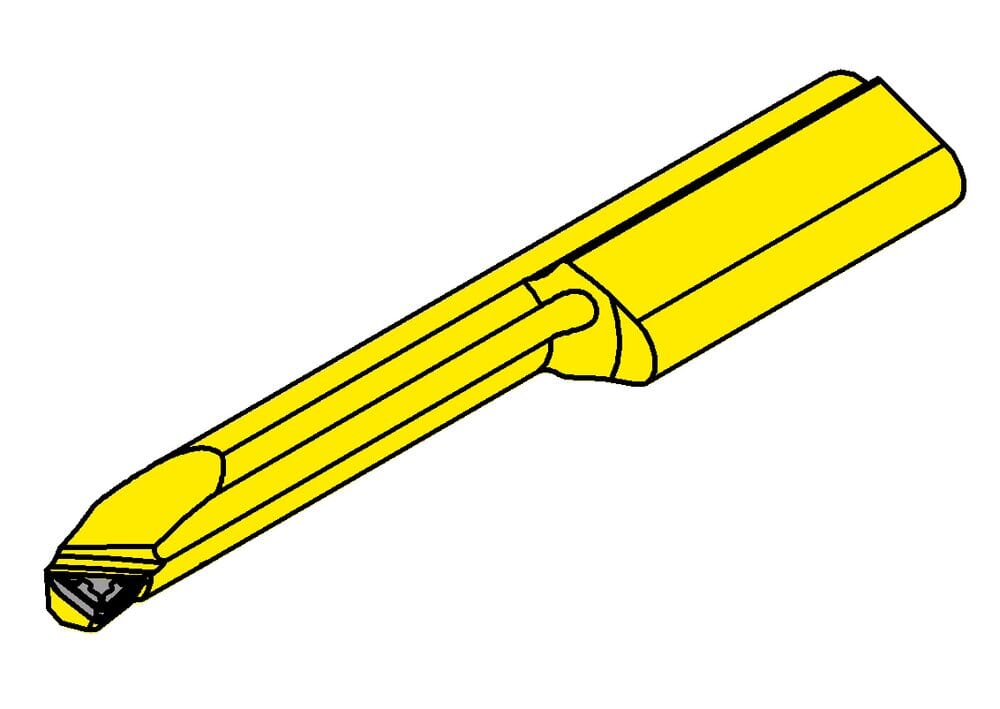

Insert - PCD tipped

Part number R105100214HFPPD75

HORN Insert - PCD tipped R105.1002.1.4.HF.P PD75 for Turning

Katalog_SSC

105124

Smallest bore diameter (Dmin)

4 mm

Total length (l5)

25 mm

Setting range radial (f)

1.9 mm

Neck diameter (d)

3.35 mm

Neck length (l2)

10 mm

ISO_SSC

HORN105124$95N$$$$$

Width of blank (b)

6.4 mm

eclass-shortcut

21-18-20-11

Maximum depth of groove (tmax)

0.15 mm

Head size (a)

3.7 mm

Top radius (r)

0.2 mm
