R105.1023.3.5 TH35
Insert
Part number R105102335TH35

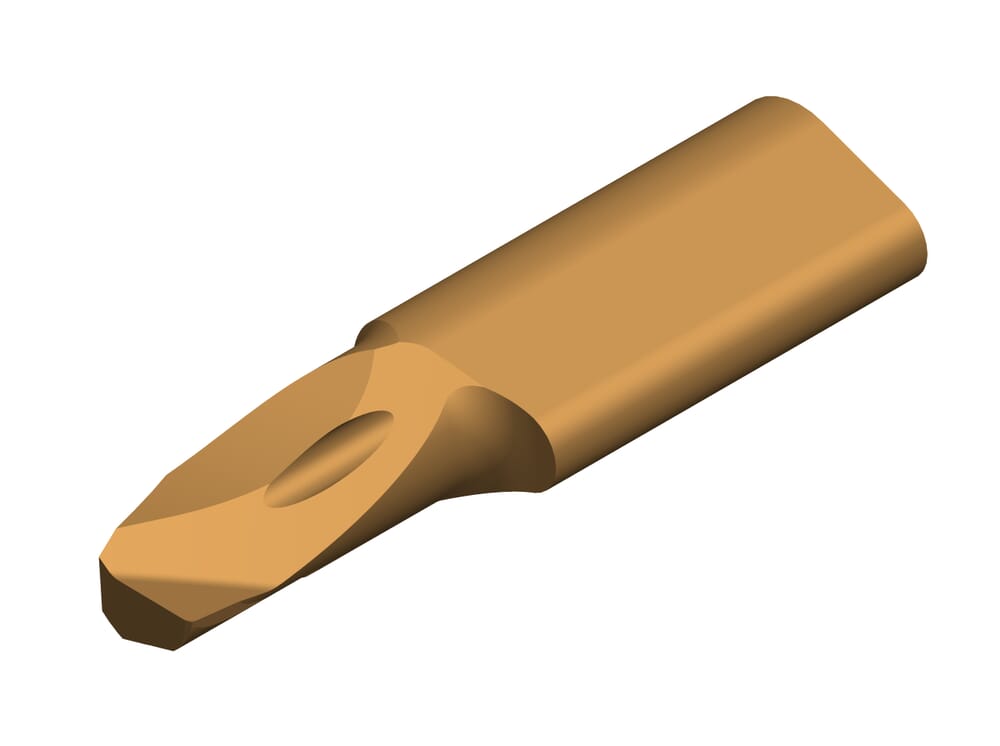

HORN Insert R105.1023.3.5 TH35 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11
Smallest bore diameter (Dmin)
5
mm
Total length (l5)
35
mm
Setting range radial (f)
2.8
mm
Neck diameter (d)
4.4
mm
Katalog_SSC
105125
DIN_SSC
HORN-10512595N
ISO_SSC
HORN105125$95N$$$$$
Width of blank (b)
7
mm
Maximum depth of groove (tmax)
0.15
mm
Head size (a)
4.7
mm
Top radius (r)
0.2
mm
Neck length (l2)
20
mm
