R105.1813.005.0.15 TH35
Insert 105
Part number R1051813005015TH35

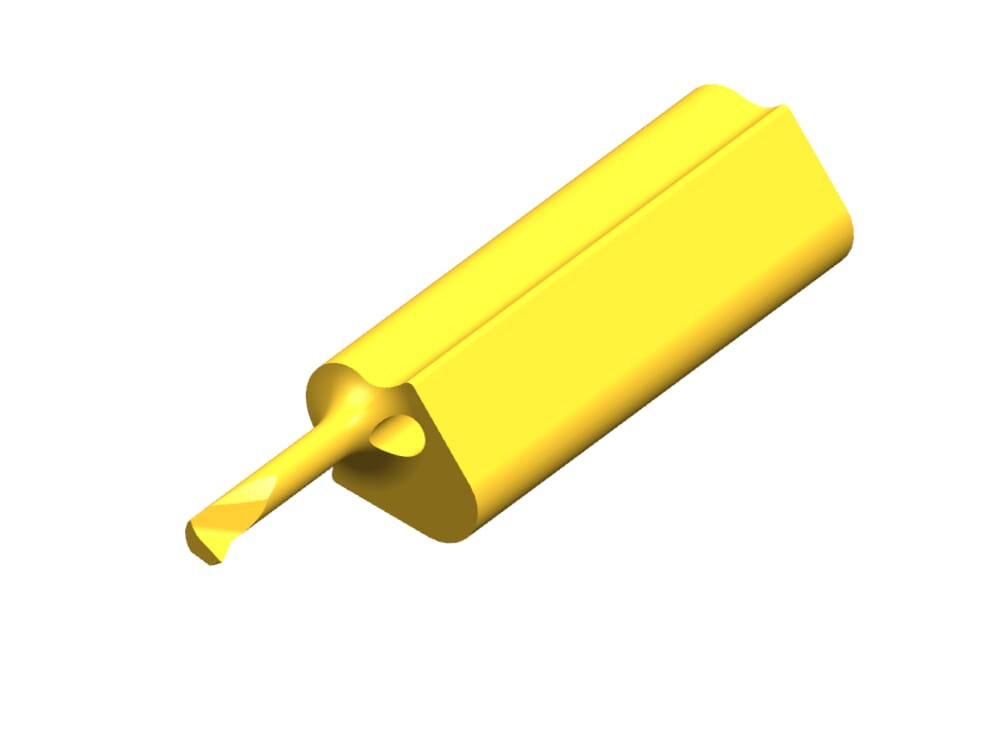

HORN Insert 105 R105.1813.005.0.15 TH35 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11
Smallest bore diameter (Dmin)
1.5
mm
Total length (l5)
25
mm
Setting range radial (f)
1.3
mm
Neck diameter (d)
1.1
mm
Katalog_SSC
105123
DIN_SSC
HORN-10512395N
ISO_SSC
HORN105123$95N$$$$$
Width of blank (b)
5.9
mm
Maximum depth of groove (tmax)
0.15
mm
Head size (a)
1.4
mm
Top radius (r)
0.05
mm
Neck length (l2)
6
mm
| Downloads | |
|---|---|
| R1051813005015_20220331_094637519.STP | Download |
| R1051813005015_20210626_153138735.DXF | Download |
| Download all files | |
