R105.1813.01.2.15 TI25
Insert
Part number R105181301215TI25

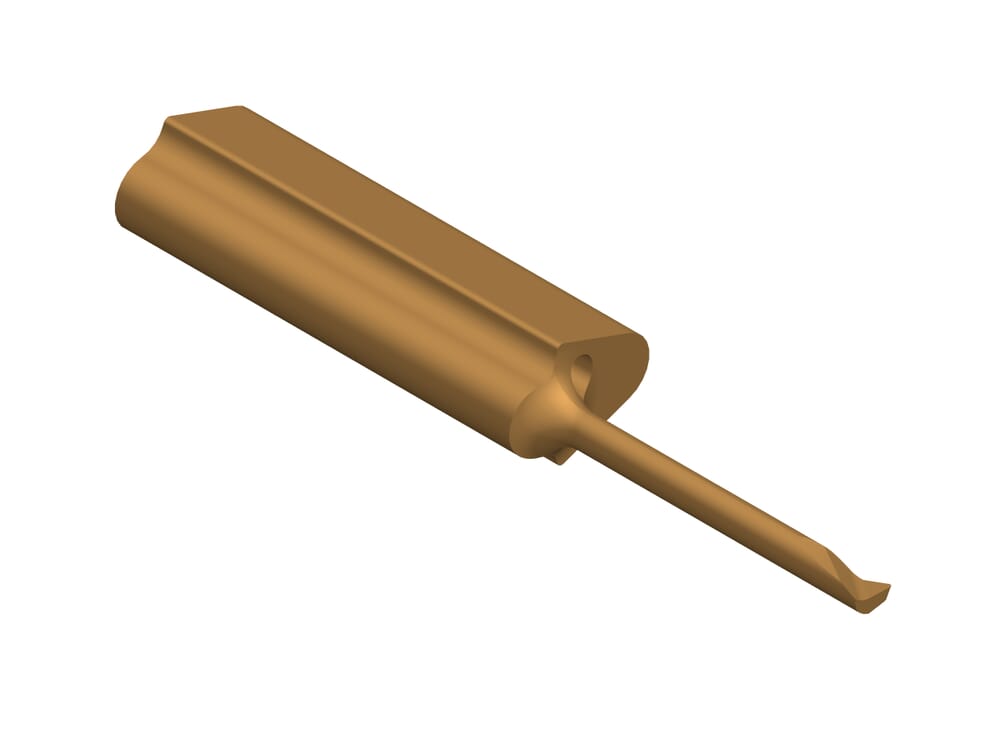

HORN Insert R105.1813.01.2.15 TI25 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11
Smallest bore diameter (Dmin)
1.5
mm
Total length (l5)
30
mm
Setting range radial (f)
1.3
mm
Neck diameter (d)
1.1
mm
Katalog_SSC
105123
DIN_SSC
HORN-10512395N
ISO_SSC
HORN105123$95N$$$$$
Width of blank (b)
5.9
mm
Maximum depth of groove (tmax)
0.15
mm
Head size (a)
1.4
mm
Top radius (r)
0.1
mm
Neck length (l2)
12
mm
| Downloads | |
|---|---|
| R105181301215_20230114_043604075.STP | Download |
| R105181301215_20210626_152752382.DXF | Download |
| Download all files | |
