R105.1823.15.2.5F SG36
Insert
Part number R10518231525FSG36

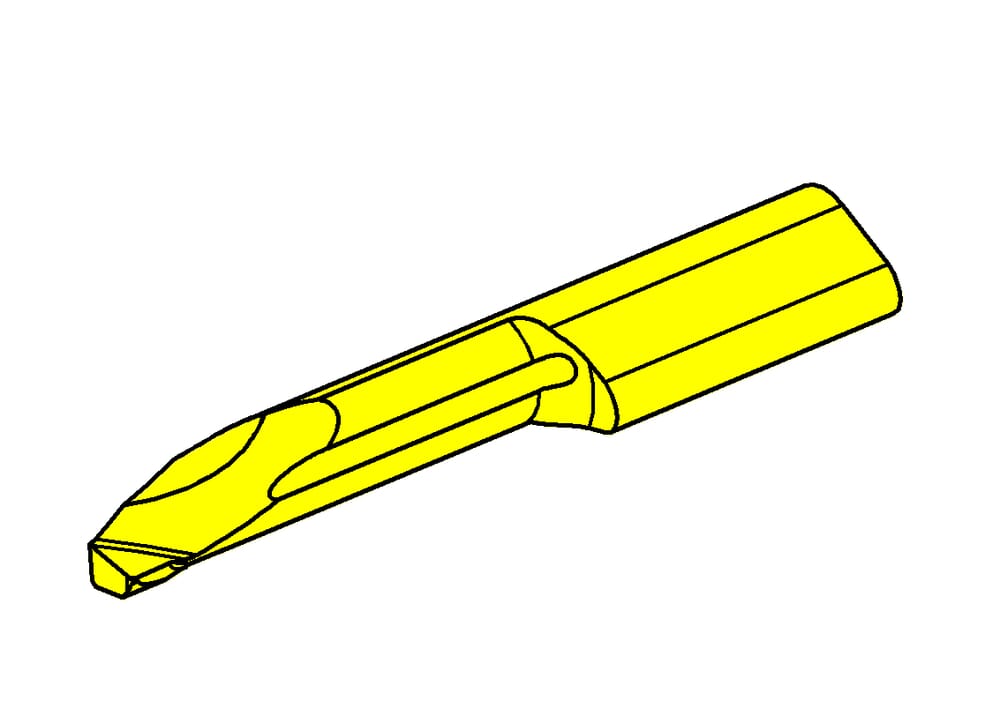

HORN Insert R105.1823.15.2.5F SG36 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11

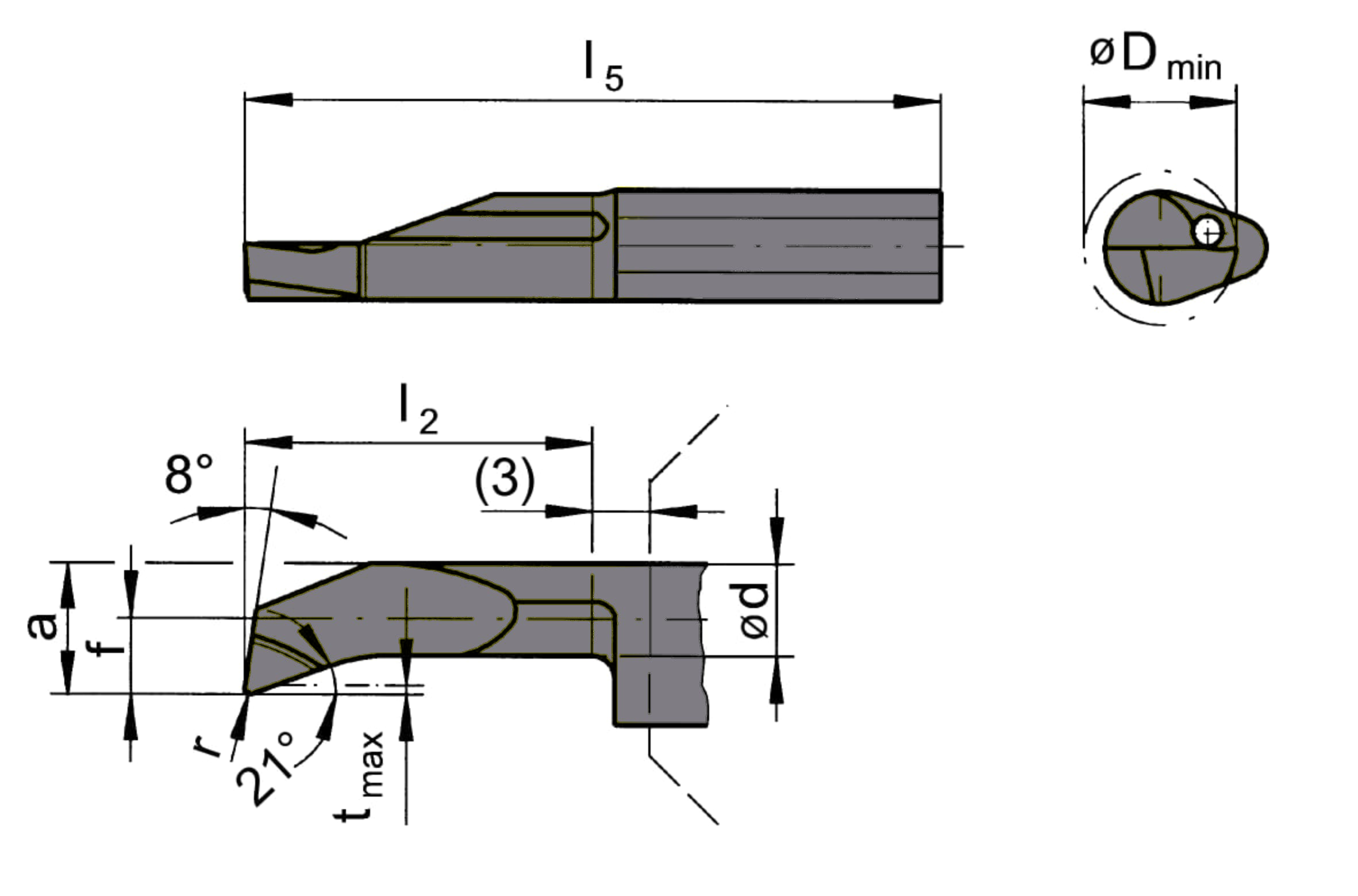

Smallest bore diameter (Dmin)
5
mm
Total length (l5)
30
mm
Setting range radial (f)
2.3
mm
Neck diameter (d)
4
mm
Katalog_SSC
105125
DIN_SSC
HORN-10512595N
ISO_SSC
HORN105125$95N$$$$$
Width of blank (b)
7
mm
Maximum depth of groove (tmax)
0.5
mm
Head size (a)
4.7
mm
Top radius (r)
0.15
mm
Neck length (l2)
15
mm
| Downloads | |
|---|---|
| R105182315_20230113_234944083.STP | Download |
| R10518231525F.DXF | Download |
| Download all files | |
