R105.3023.5.5 TI25
Inserts
Part number R105302355TI25

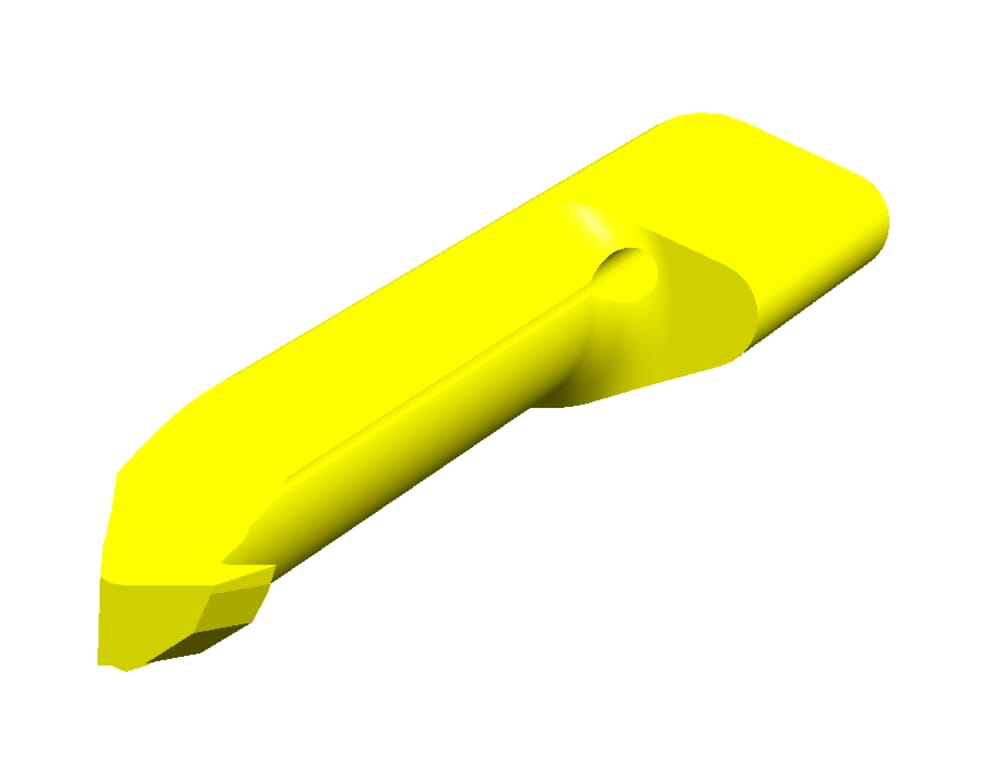

HORN Inserts R105.3023.5.5 TI25 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11
Smallest bore diameter (Dmin)
5
mm
Total length (l5)
45
mm
Setting range radial (f)
2.3
mm
Neck diameter (d)
3.5
mm
Katalog_SSC
105125
DIN_SSC
HORN-10512595N
ISO_SSC
HORN105125$95N$$$$$
Width of blank (b)
7
mm
Maximum depth of groove (tmax)
1
mm
Head size (a)
4.7
mm
Top radius (r)
0.2
mm
Neck length (l2)
30
mm
