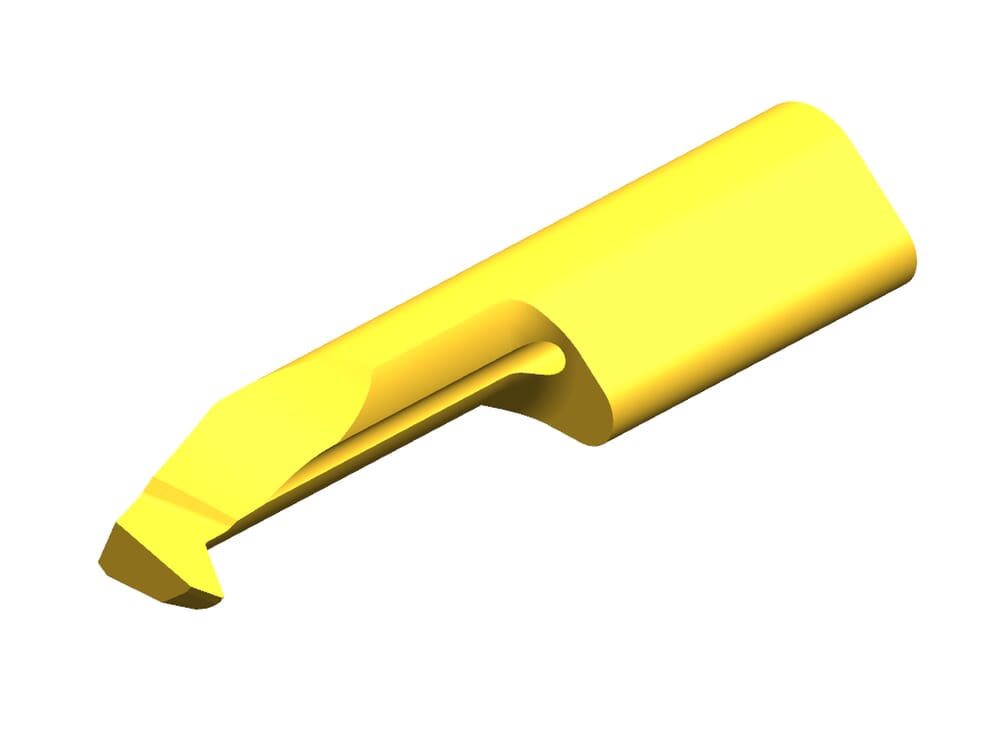

R105.3240.2.4 TN35
Inserts
Part number R105324024TN35
HORN Inserts R105.3240.2.4 TN35 for Gewinden
Please note:Technical instructions
Thread per Inch (minimum) (TPImin)
32
Smallest bore diameter (Dmin)
4
mm
Setting length (E)
0.45
mm
Cutting insert width (a)
3.7
mm
Setting range radial (f)
1.9
mm
Neck diameter (d)
2.7
mm
Katalog_SSC
105124
DIN_SSC
HORN-10512495N
ISO_SSC
HORN105124$95N$$$$$
Thread per Inch (maximum) (TPImax)
40
Width of blank (b)
6.4
mm
eclass-shortcut
21-18-20-11
Cutting insert total length (l5)
30
mm
number-of-teeth
1
St.
Neck length (l2)
15
mm
| Downloads | |
|---|---|
| R105324024_20210630_145328742.STP | Download |
| R105324024.DXF | Download |
| Download all files | |
