R105.8V30.2.8 EG35
Inserts
Part number R1058V3028EG35

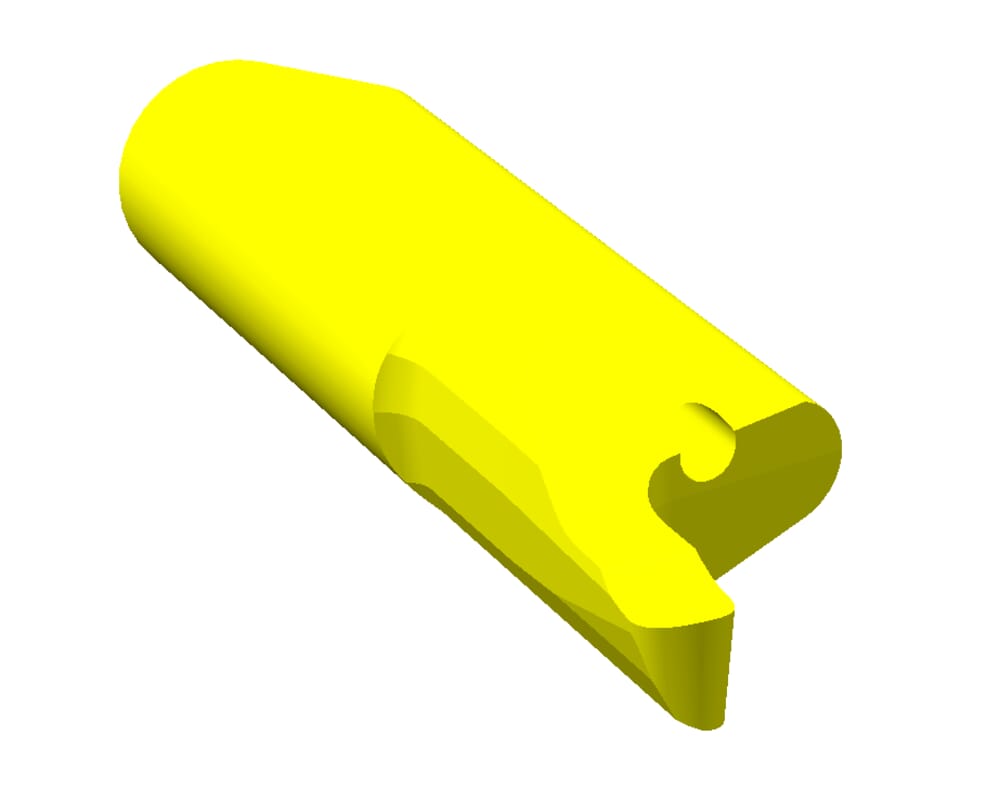

HORN Inserts R105.8V30.2.8 EG35 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11
Total length (l5)
35
mm
Width of groove (w)
3
mm
Katalog_SSC
105125
DIN_SSC
HORN-10512595N
ISO_SSC
HORN105125$95N$$$$$
Smallest axial bore diameter (Da min)
8
mm
Width of blank (b)
7
mm
Full radius (r)
1.5
mm
Maximum depth of groove (tmax a)
6
mm
Adjustment dimension cutting center (f)
2
mm
Neck length (l2)
15
mm
| Downloads | |
|---|---|
| R1058V3028_20230114_013912303.STP | Download |
| R1058V3028.DXF | Download |
| Download all files | |
