R105.9013.003.0.25 ES15
Insert
Part number R1059013003025ES15

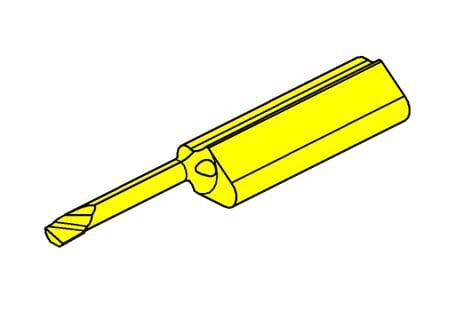

HORN Insert R105.9013.003.0.25 ES15 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11

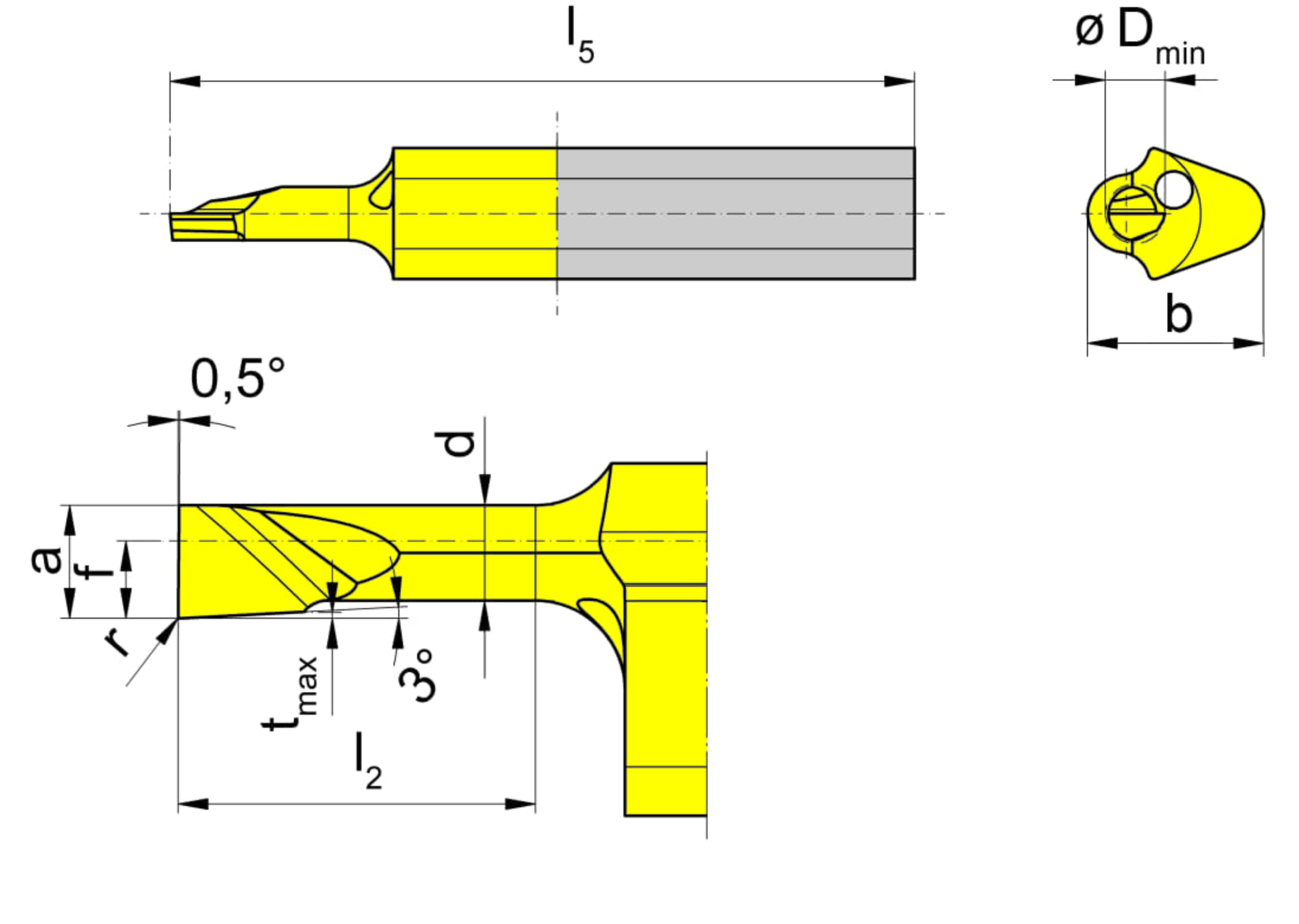

Smallest bore diameter (Dmin)
2.5
mm
Total length (l5)
25
mm
Setting range radial (f)
1.3
mm
Neck diameter (d)
2
mm
Katalog_SSC
105123
DIN_SSC
HORN-10512395N
ISO_SSC
HORN105123$95N$$$$$
Width of blank (b)
5.9
mm
Maximum depth of groove (tmax)
0.1
mm
Head size (a)
2.3
mm
Top radius (r)
0.03
mm
Neck length (l2)
6
mm
