R106.0150.2.00 TH35
Insert
Part number R1060150200TH35

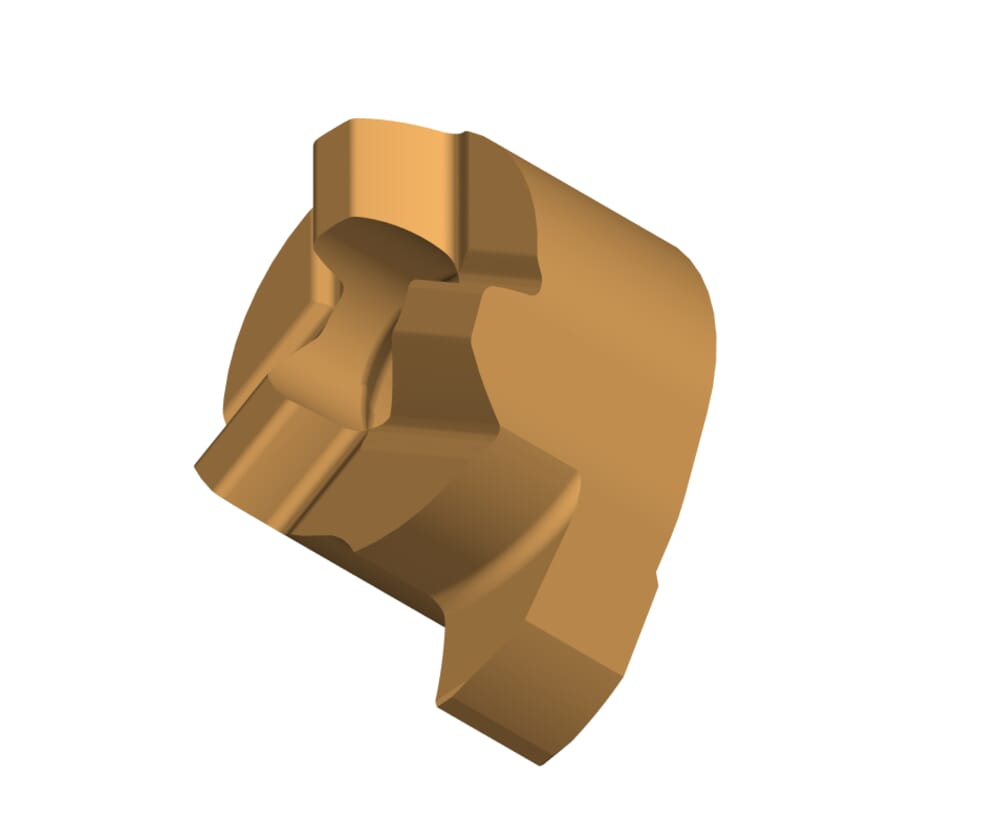

HORN Insert R106.0150.2.00 TH35 for Turning
Please note:Technical instructions
Smallest bore diameter (Dmin)
6.5
mm
Cutting insert height, Cutting insert thickness (s)
2.8
mm
Tooth diameter, head diameter (d)
4.4
mm
Setting range radial (f)
3.7
mm
Width of groove (w)
1.5
mm
Katalog_SSC
106044R
DIN_SSC
HORN-10604484R
ISO_SSC
HORN106044$84R$$$$$
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
0.8
mm
Head size (a)
5.9
mm
| Downloads | |
|---|---|
| R1060150200_20230113_215040152.STP | Download |
| R1060150200_20210628_180553253.DXF | Download |
| Download all files | |
