R106.1831.1.02 TH35
Insert
Part number R1061831102TH35

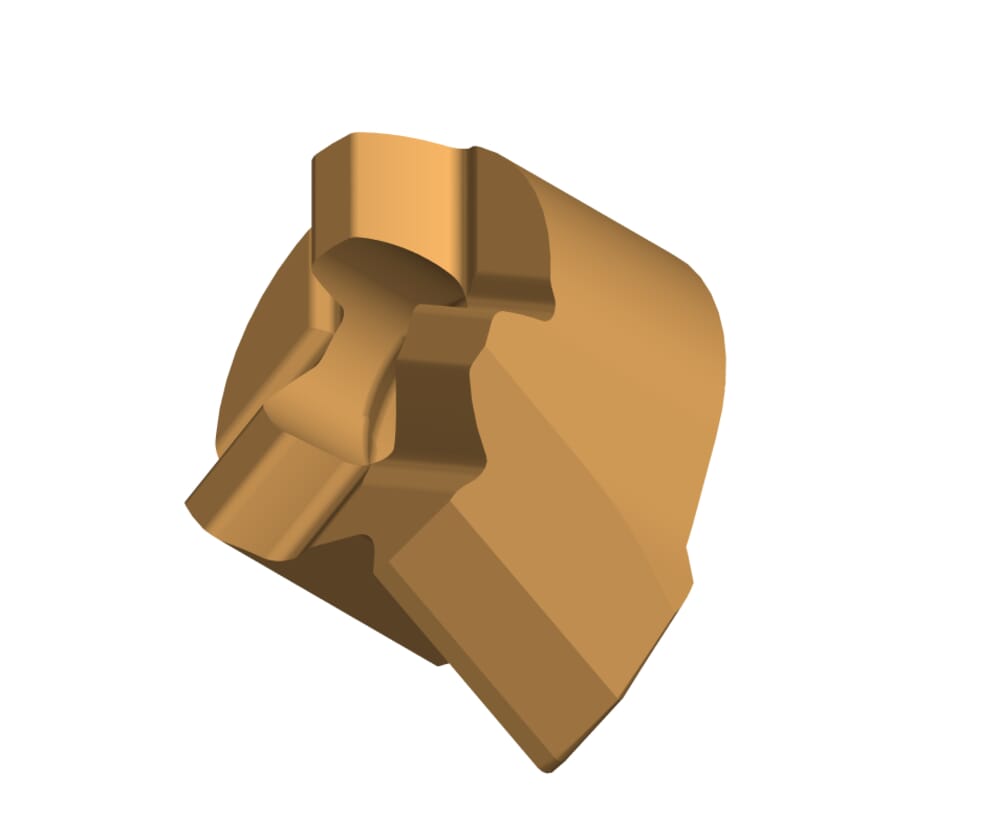

HORN Insert R106.1831.1.02 TH35 for Turning
Please note:Technical instructions
Top radius (r)
0.2 mm
Head size (a)
5.4 mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN106044$84R$$$$$
Katalog_SSC
106044R
Setting range radial (f)
3.2 mm
Tooth diameter, head diameter (d)
4.4 mm
Cutting insert height, Cutting insert thickness (s)
2.8 mm
Smallest bore diameter (Dmin)
6 mm
| Downloads | |
|---|---|
| R106_1831_1_02_TH35-DXF.DXF | Download |
| R106_1831_1_02_TH35-STP.STP | Download |
| R106_1831_1_02_TH35-ISO.XML | Download |
| R106_1831_1_02_TH35-DIN.XML | Download |
| Download all files | |
