R107.1002.1.H5.P PD75

Insert

Part number R10710021H5PPD75

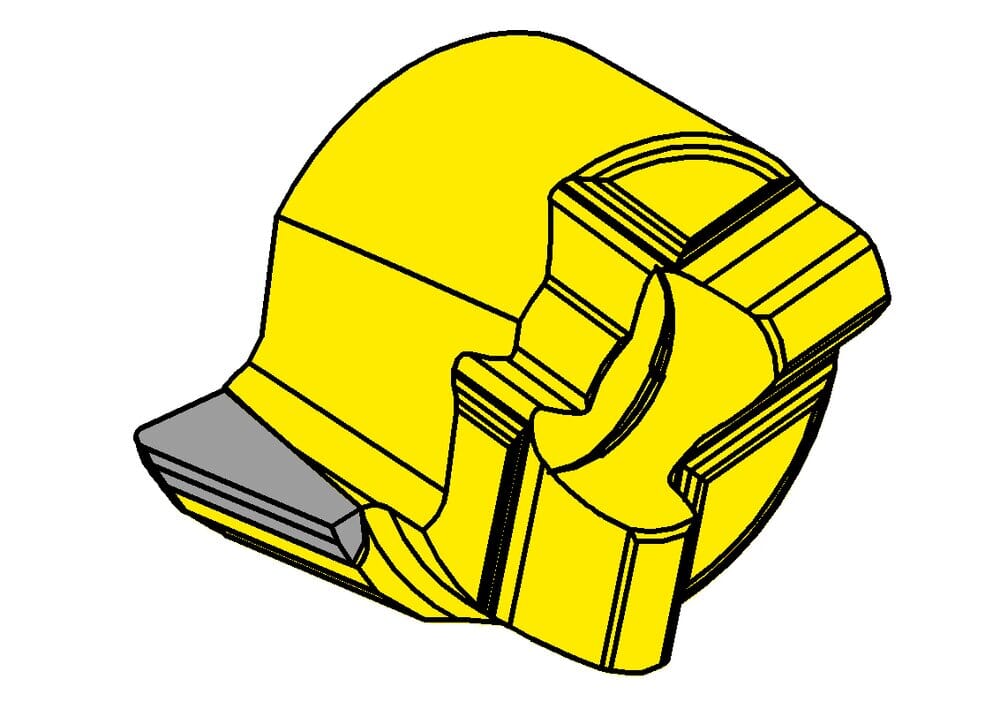

HORN Insert R107.1002.1.H5.P PD75 for Turning

Top radius (r)

0.2 mm

Head size (a)

6.3 mm

Maximum depth of groove (tmax)

0.3 mm

eclass-shortcut

21-18-20-11

ISO_SSC

HORN107052$84R$$$$$

Katalog_SSC

107052R

Setting range radial (f)

3.7 mm

Tooth diameter, head diameter (d)

5.2 mm

Cutting insert height, Cutting insert thickness (s)

3.3 mm

Smallest bore diameter (Dmin)

6.8 mm
