R108.PG18.02 TN35

insert

Part number R108PG1802TN35

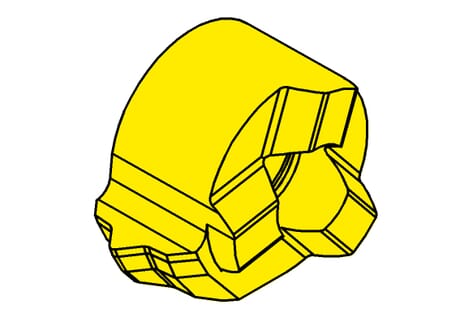

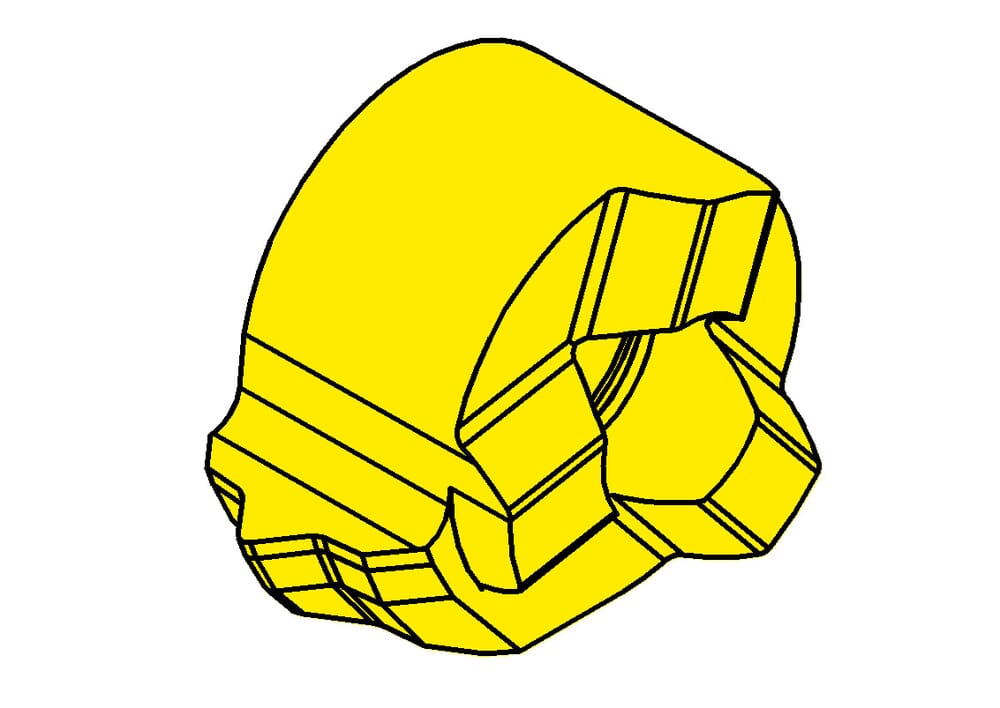

HORN insert R108.PG18.02 TN35 for Gewinden

ISO_SSC

HORN108060$84R$$$$$

Smallest bore diameter (Dmin)

8 mm

Cutting insert height, Cutting insert thickness (s)

3.6 mm

Setting length (E)

1.9 mm

Tooth diameter, head diameter (d)

6 mm

Cutting insert width (a)

7.8 mm

Setting range radial (f)

4.8 mm

Katalog_SSC

108060R

DIN_SSC

HORN-10806084R

eclass-shortcut

21-18-20-11

Threads per inch (TPI)

number-of-teeth

1 St.
