R109.0100.6.6 TH35
insert
Part number R109010066TH35

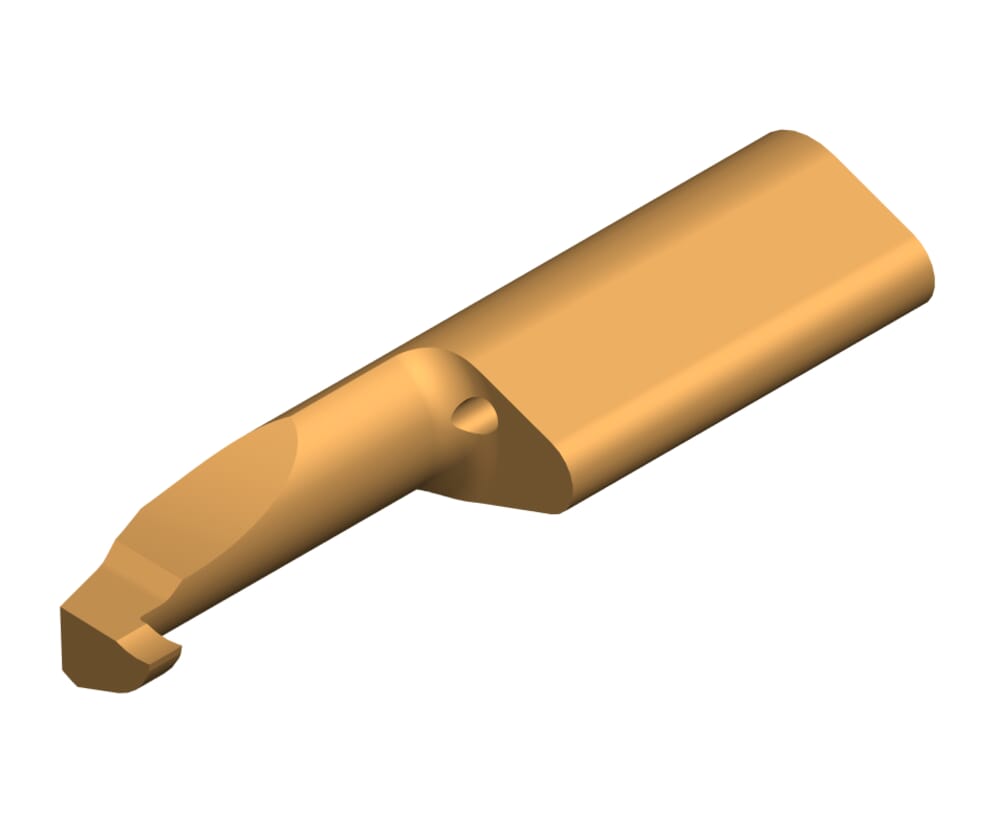

HORN insert R109.0100.6.6 TH35 for Turning
Please note:Technical instructions
Smallest bore diameter (Dmin)
6
mm
Total length (l5)
53
mm
Setting range radial (f)
2.8
mm
Neck diameter (d)
3.7
mm
Width of groove (w)
1
mm
Katalog_SSC
109140
DIN_SSC
HORN-10914095N
ISO_SSC
HORN109140$95N$$$$$
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
1.8
mm
Head size (a)
5.7
mm
Neck length (l2)
35
mm
| Downloads | |
|---|---|
| R109010066_20230113_171611407.STP | Download |
| R109010066_20211123_231404976.DXF | Download |
| Download all files | |
