R111.3367.02 EG55
Insert
Part number R111336702EG55

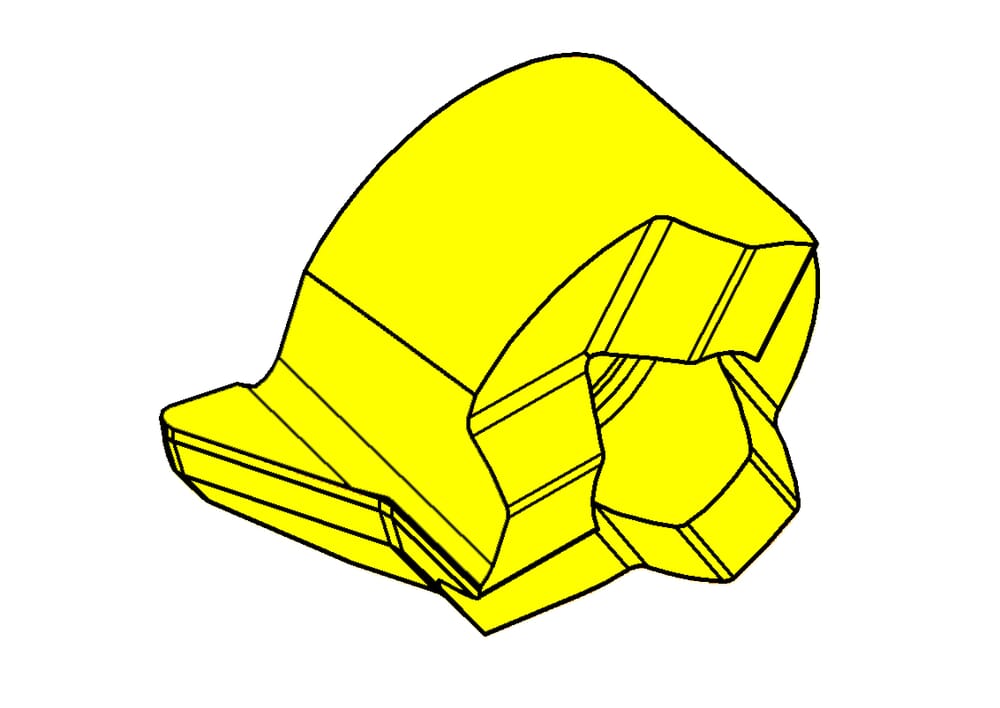

HORN Insert R111.3367.02 EG55 for Turning
Please note:Technical instructions

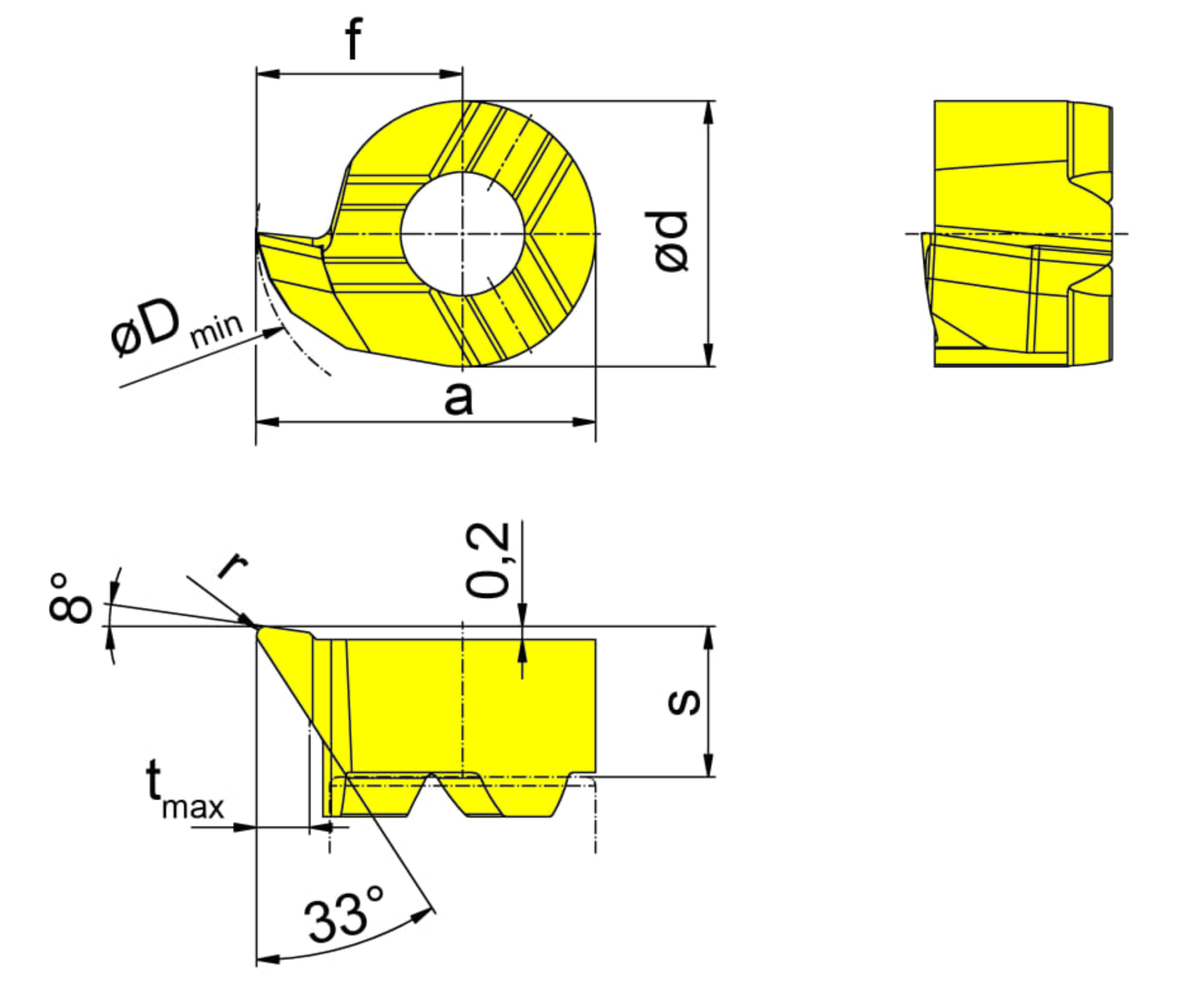

Top radius (r)
0.2
mm
Head size (a)
10.7
mm
Maximum depth of groove (tmax)
1.8
mm
ISO_SSC
HORN111080$84R$$$$$
DIN_SSC
HORN-11108084R
Katalog_SSC
111080R
Setting range radial (f)
6.7
mm
Tooth diameter, head diameter (d)
8
mm
Cutting insert height, Cutting insert thickness (s)
3.95
mm
Smallest bore diameter (Dmin)
11
mm
| Downloads | |
|---|---|
| R111336702_20240205_215455190.DXF | Download |
| R111336702.STP | Download |
| Download all files | |
