R114.1220.00 TN35

Inserts

Part number R114122000TN35

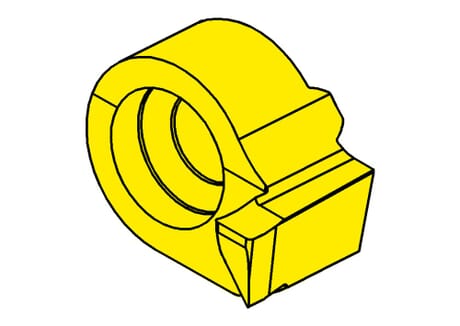

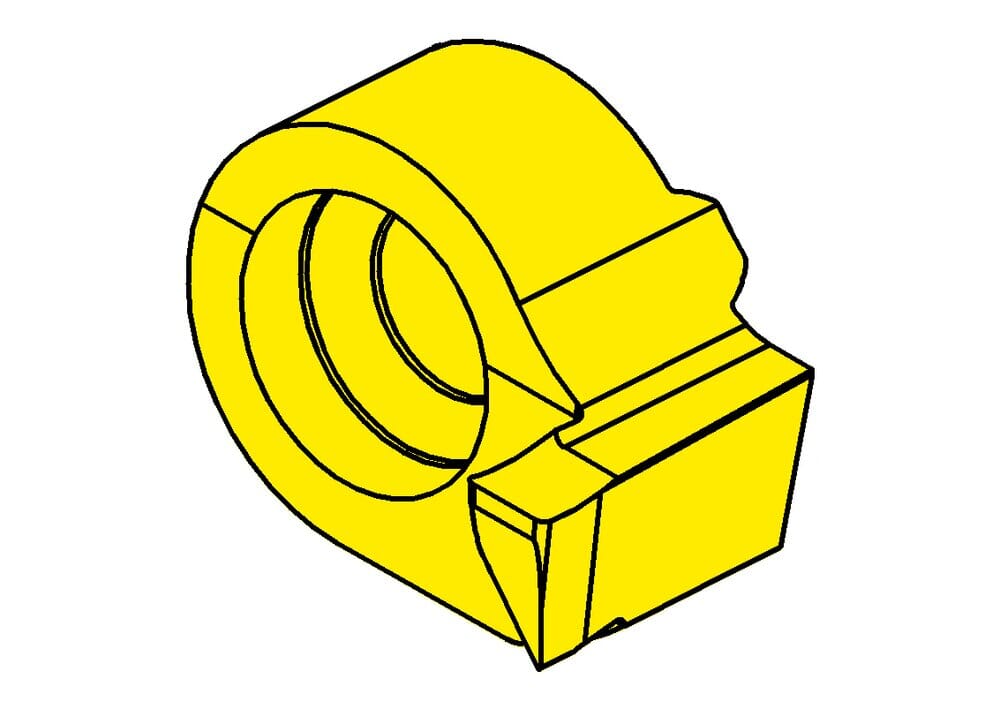

HORN Inserts R114.1220.00 TN35 for Turning

Head size (a)

12 mm

Maximum depth of groove (tmax a)

3 mm

eclass-shortcut

21-18-20-11

Smallest axial bore diameter (Da min)

12 mm

ISO_SSC

HORN114090$84R$$$$$

Katalog_SSC

114090R

Width of groove (w)

2 mm

Setting range radial (f)

7.5 mm

Corner radius (r)

0.2 mm

Cutting insert height, Cutting insert thickness (s)

8.3 mm
