R114.1430.00 MG12

Insert

Part number R114143000MG12

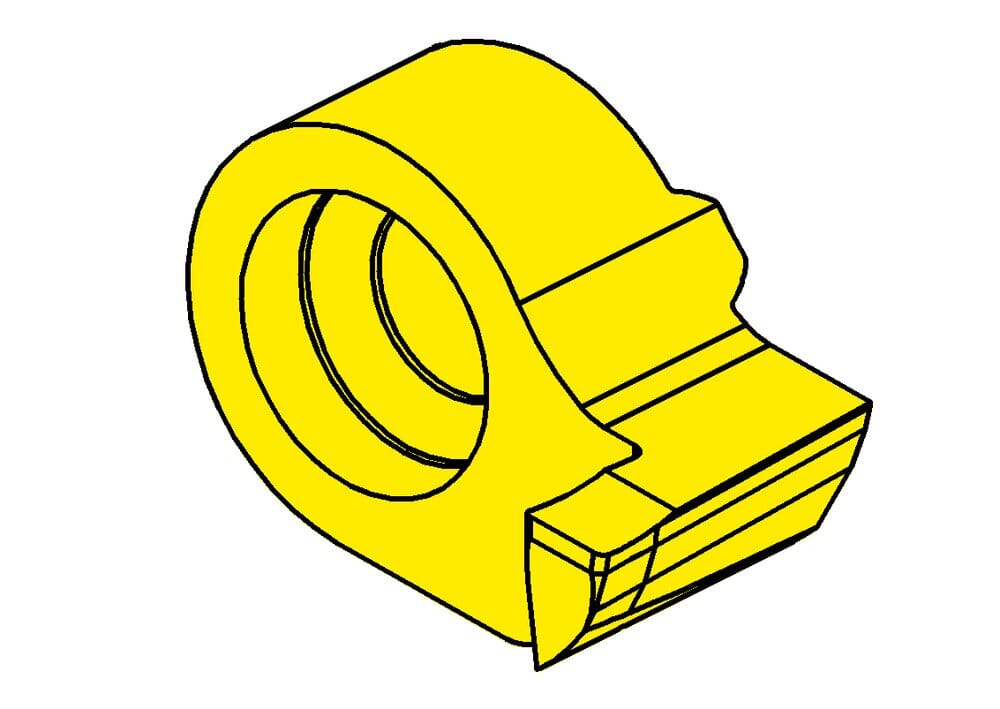

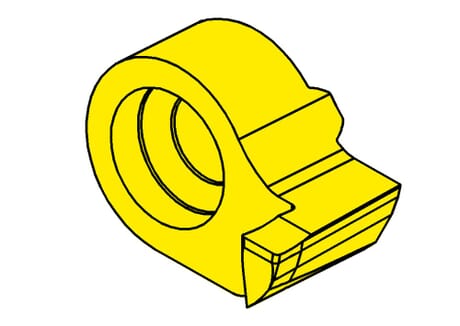

HORN Insert R114.1430.00 MG12 for Turning

Head size (a)

13.5 mm

Maximum depth of groove (tmax a)

3 mm

eclass-shortcut

21-18-20-11

Smallest axial bore diameter (Da min)

14 mm

ISO_SSC

HORN114090$84R$$$$$

Katalog_SSC

114090R

Width of groove (w)

3 mm

Setting range radial (f)

9 mm

Corner radius (r)

0.2 mm

Cutting insert height, Cutting insert thickness (s)

8.3 mm
