R114.VR20.H5.P PD75

Insert

Part number R114VR20H5PPD75

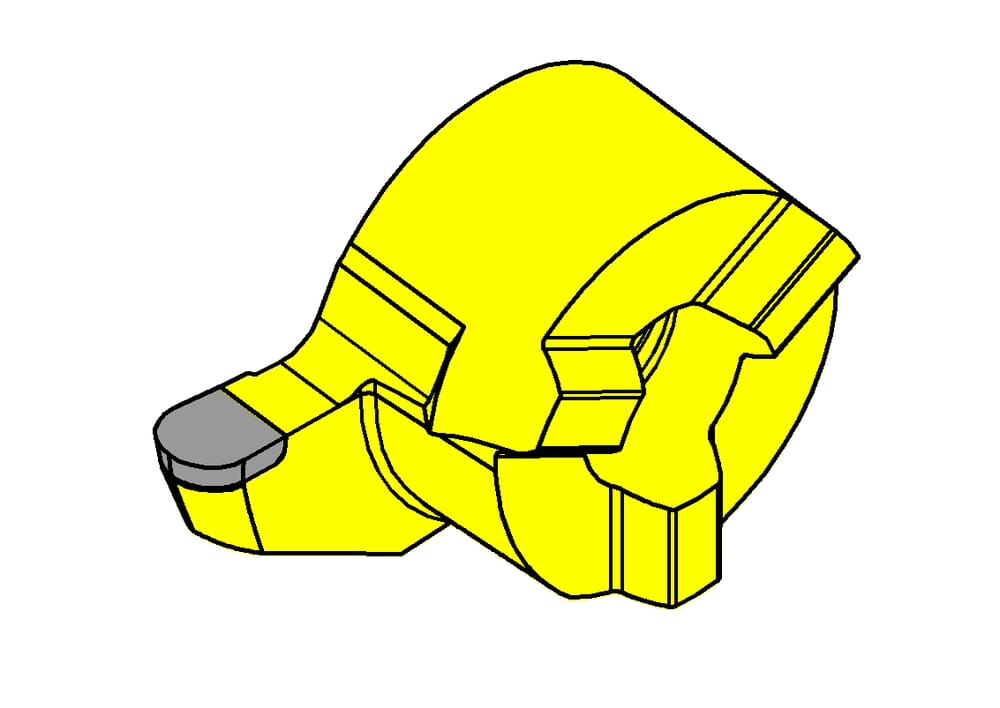

HORN Insert R114.VR20.H5.P PD75 for Turning

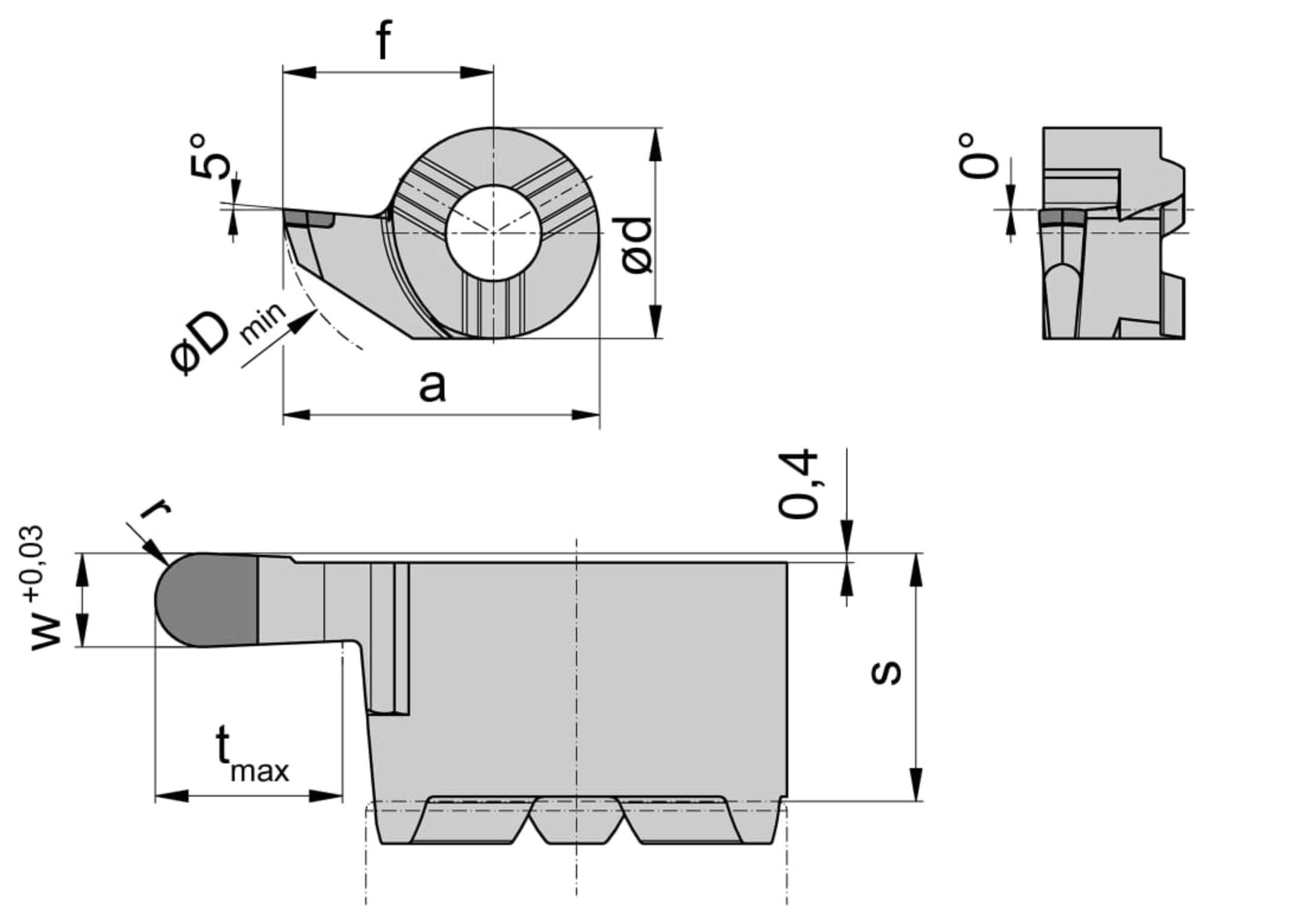

Smallest bore diameter (Dmin)

14 mm

Cutting insert height, Cutting insert thickness (s)

5.3 mm

Tooth diameter, head diameter (d)

9 mm

Setting range radial (f)

9 mm

Width of groove (w)

2 mm

Katalog_SSC

114090R

DIN_SSC

HORN-11409084R

ISO_SSC

HORN114090$84R$$$$$

eclass-shortcut

21-18-20-11

Full radius (r)

1 mm

Maximum depth of groove (tmax)

4 mm

Head size (a)

13.5 mm
