R116.0011.22 TN35

Inserts

Part number R116001122TN35

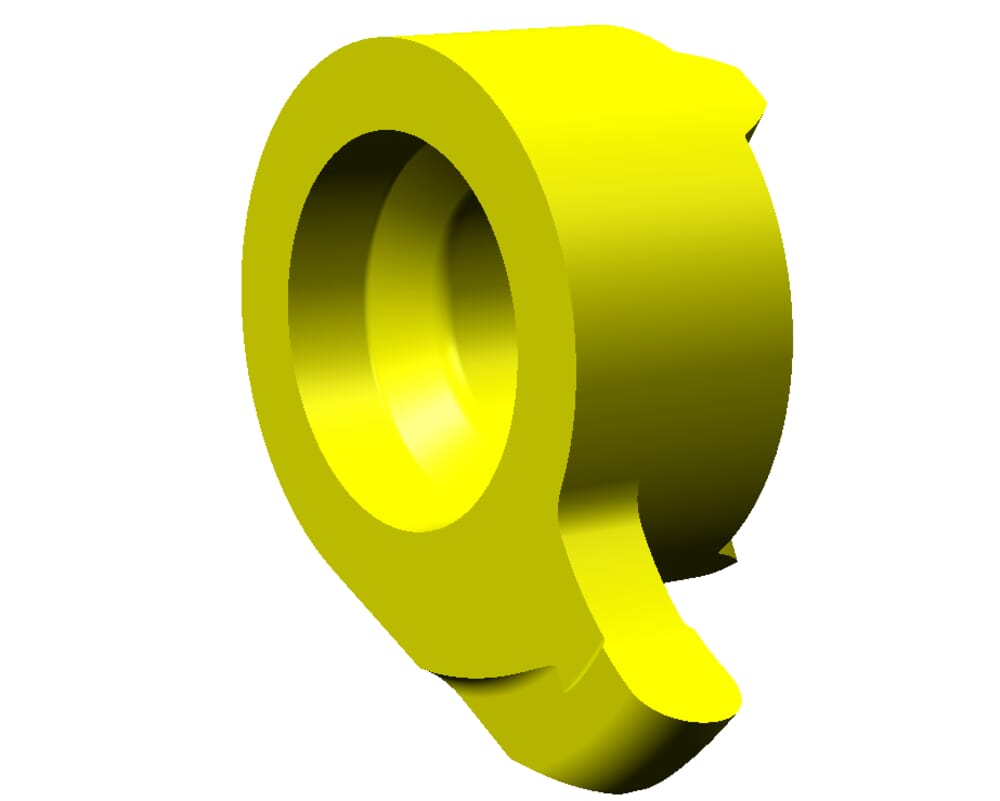

HORN Inserts R116.0011.22 TN35 for Milling and Turning

ISO_SSC

HORN116110$84R$$$$$

Number of teeth (Z)

1 St.

Smallest bore diameter (Dmin)

16 mm

Cutting insert height, Cutting insert thickness (s)

5.3 mm

Radius, full-radius (r)

1.1 mm

Tooth diameter, head diameter (d)

11 mm

Setting range radial (f)

10.2 mm

Width of groove (w)

2.2 mm

Katalog_SSC

116110R

DIN_SSC

HORN11611084R

eclass-shortcut

21-18-20-11

Maximum depth of groove (tmax)

4.3 mm

Head size (a)

15.7 mm

Cutting diameter (Ds)

20.4 mm
