R220.00C4.K1.IK

Toolholder

Part number R22000C4K1IK

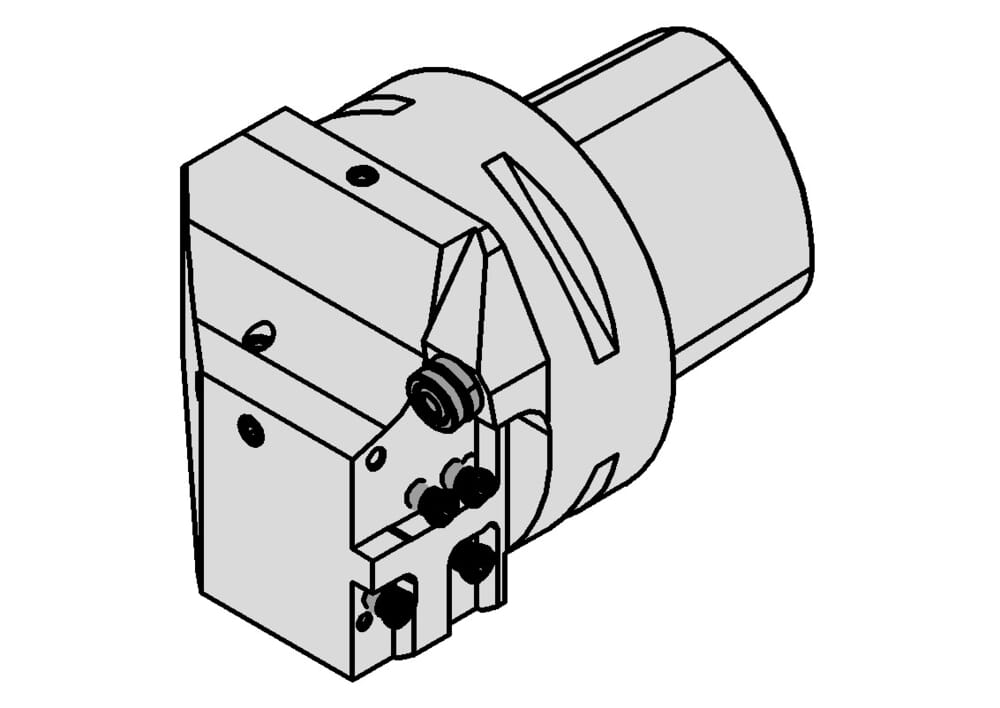

HORN Toolholder R220.00C4.K1.IK for Turning

DIN_CCTWS

HORN-22000193;HORN-22000193;HORN-22000183;HORN-22000183

eclass-shortcut

21-18-10-18

ISO_CCTMS

CCS01C0400$$$$;CCS01C0400$$$$

DIN_CCTMS

CCS04000195;CCS04000195

Katalog_CCTWS

220001

Distance from center (h1)

12.5 mm

ISO_CCTWS

HORN22000193$$;HORN22000193$$;HORN22000183$$;HORN22000183$$

Length assembly formula (l)

l1+lK

Adjustment dimension (formula) (f)

f1+f3

Length from bore (l2)

50 mm

Adjustment dimension (f1)

4.6 mm

Bore diameter rotate (d1)

40 mm

System cassette from the collar (l1)

40 mm
