R312.3030.02 TN35
Inserts
Part number R312303002TN35

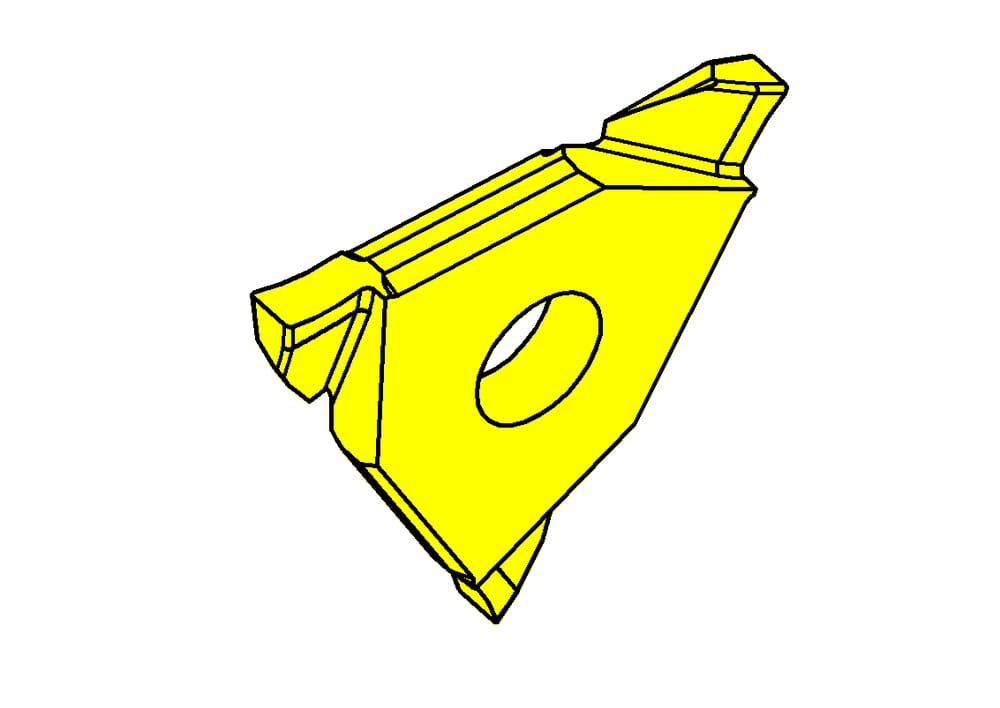

HORN Inserts R312.3030.02 TN35 for Turning
Please note:Technical instructions

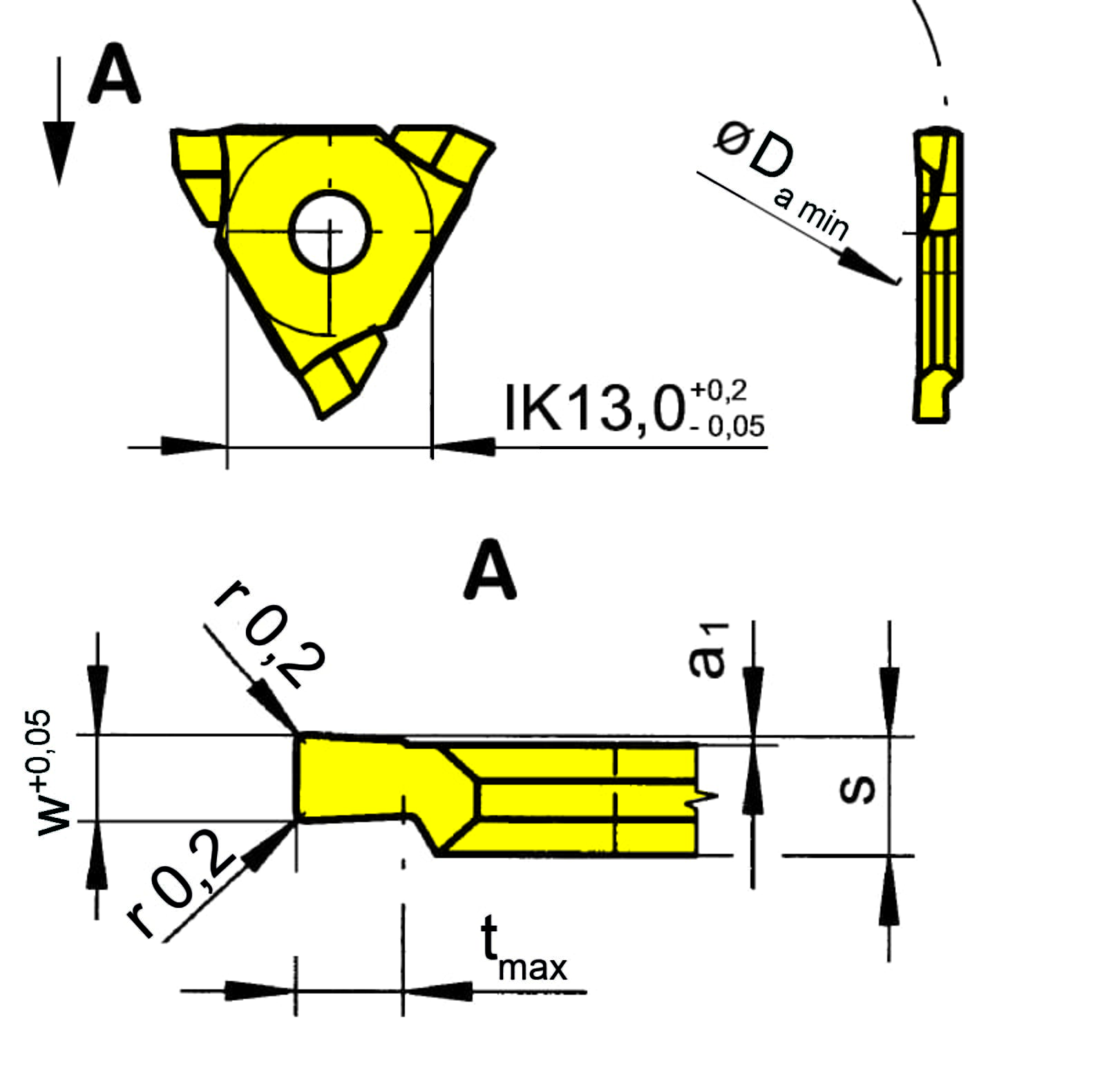

Cancellation (a1)
0.2
mm
Maximum depth of groove (tmax)
3
mm
Maximum workpiece diameter (Da min)
30
mm
eclass-shortcut
21-18-20-01
ISO_SSC
HORN-31203$000N$$$$$;HORN-31203$000R$$$$$;HORN-31203$000L$$$$$
DIN_SSC
HORN-31203000N;HORN-31203000R;HORN-31203000L
Katalog_SSC
31203N;31203R;31203L
Plating seat size (Größe)
3
Width of groove (w)
3
mm
Cutting insert width (s)
3.7
mm
| Downloads | |
|---|---|
| R312303002_20230113_180213260.STP | Download |
| R312303002.DXF | Download |
| Download all files | |
