R315.0300.04 AS46
Insert
Part number R315030004AS46

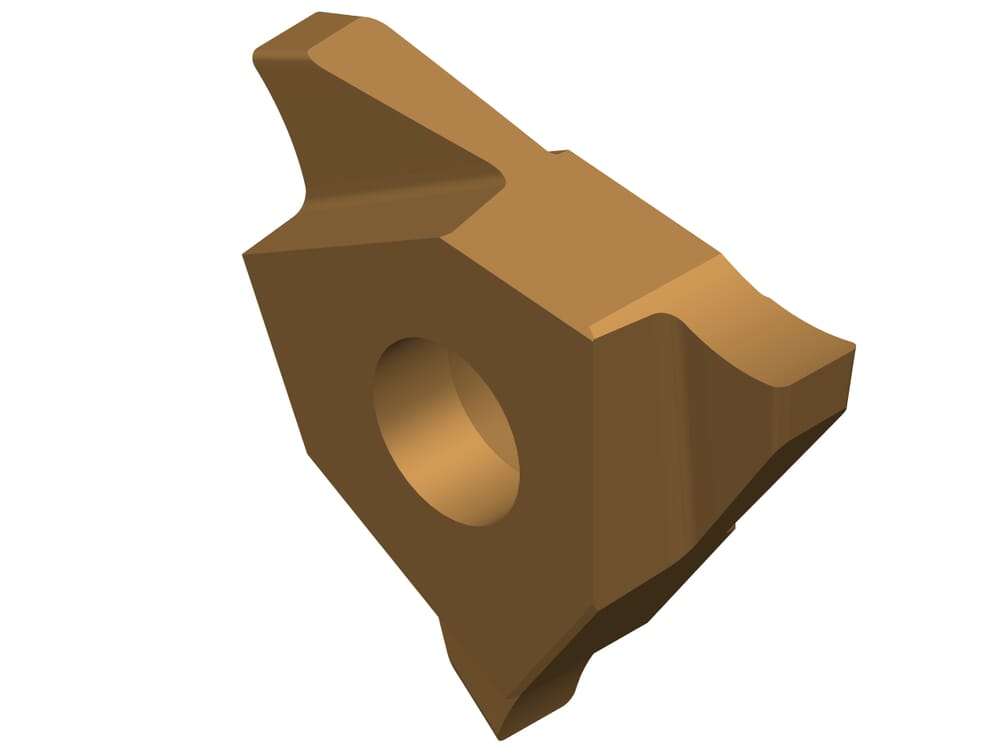

HORN Insert R315.0300.04 AS46 for Turning
Please note:Technical instructions

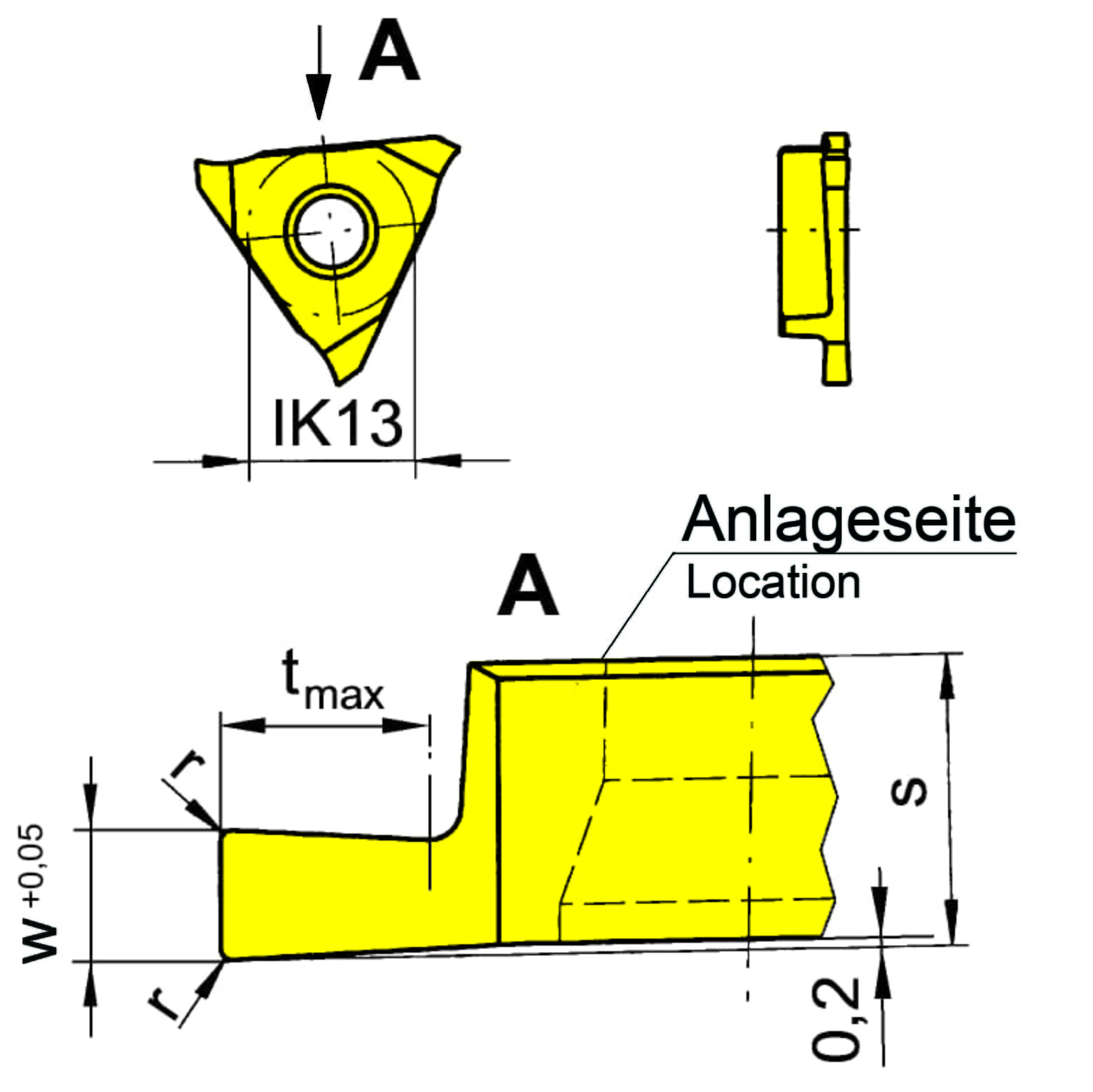

Maximum depth of groove (tmax)
4
mm
eclass-shortcut
21-18-20-01
ISO_SSC
HORN31505$051R$$$$$
DIN_SSC
HORN-31505051R
Katalog_SSC
31505R
Plating seat size (Größe)
5
Width of groove (w)
3
mm
Cutting insert width (s)
5.4
mm
Corner radius (r)
0.4
mm
| Downloads | |
|---|---|
| R315030004_20230113_172937790.STP | Download |
| R315030004_20211124_140704019.DXF | Download |
| Download all files | |
