R315.0360.18 AS45
insert
Part number R315036018AS45

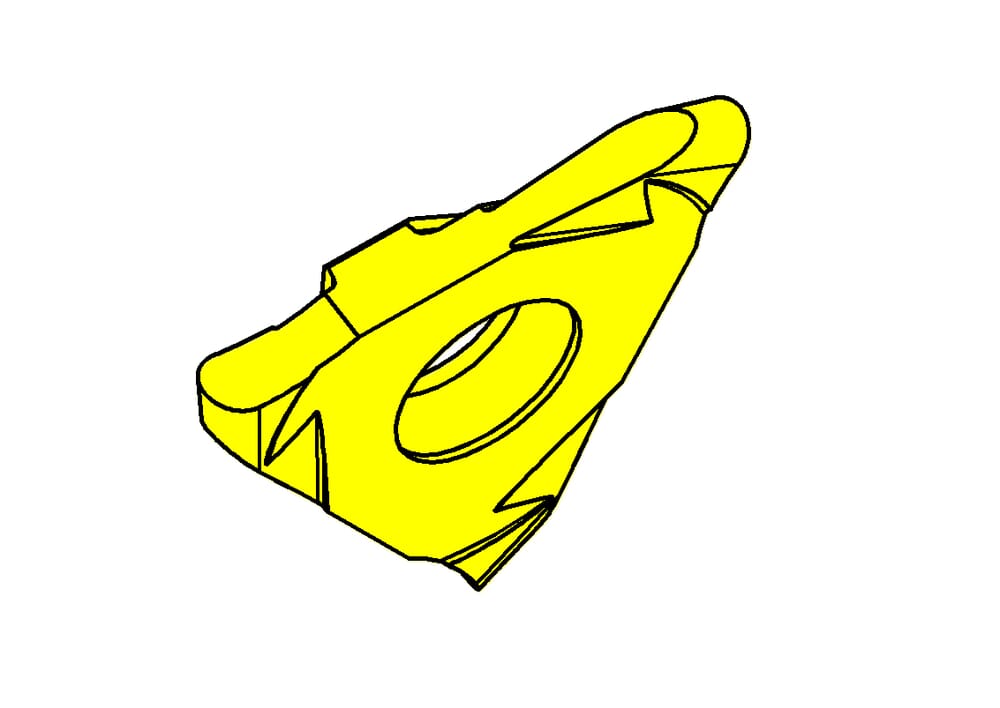

HORN insert R315.0360.18 AS45 for Turning
Please note:Technical instructions

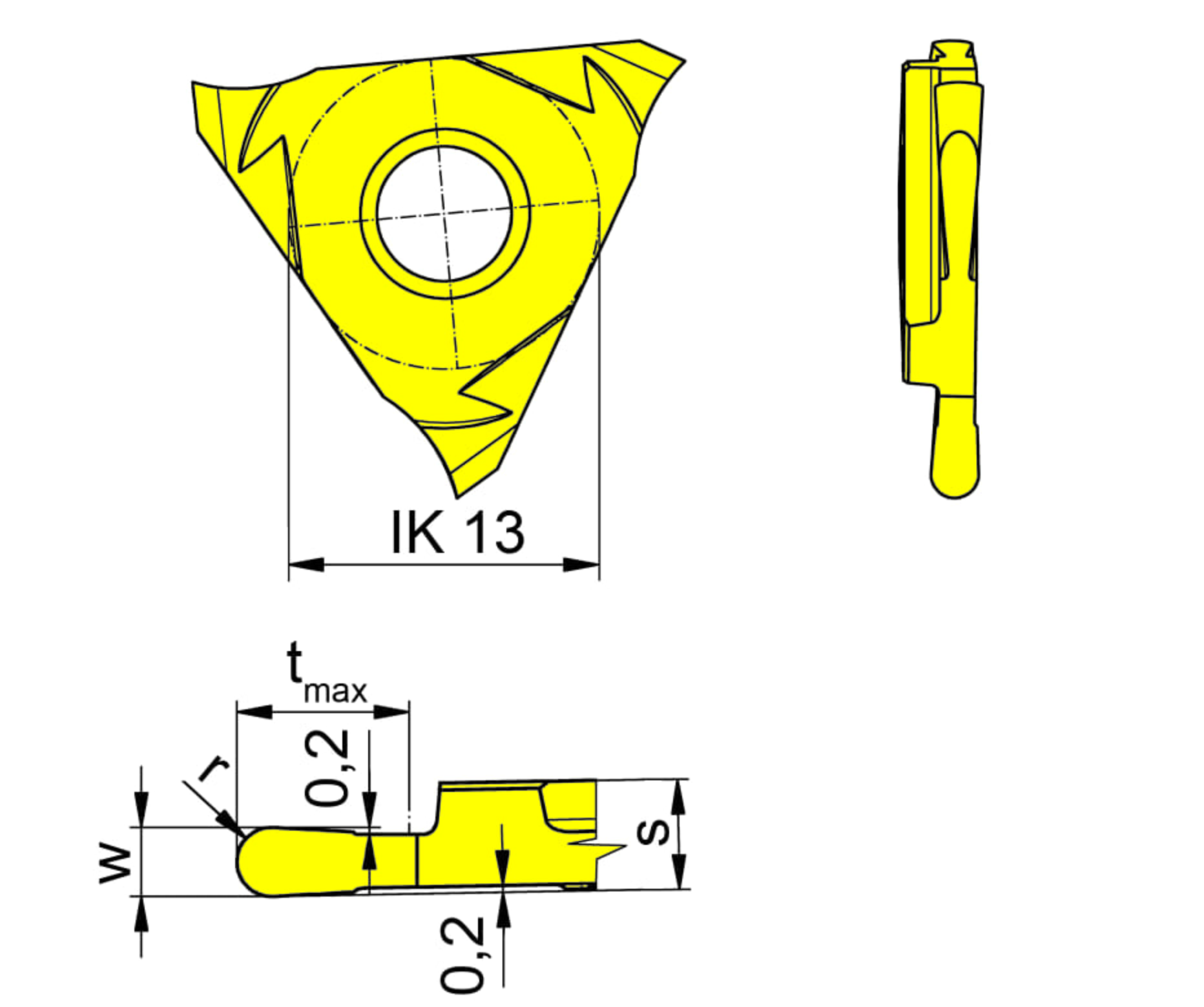

Maximum depth of groove (tmax)
5
mm
Full radius (r)
1.8
mm
eclass-shortcut
21-18-20-01
ISO_SSC
HORN31505$051R$$$$$
DIN_SSC
HORN-31505051R
Katalog_SSC
31505R
Plating seat size (Größe)
5
Width of groove (w)
3.6
mm
Cutting insert width (s)
5.4
mm
| Downloads | |
|---|---|
| R315036018_20240117_002142286.STP | Download |
| R315036018.DXF | Download |
| Download all files | |
